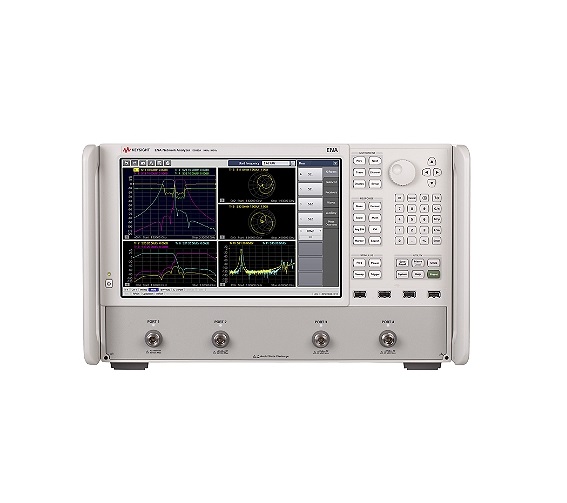

KEYSIGHT E5080A ENAベクトルネットワークアナライザー (9kHz~9GHz)

• Frequency: 9 kHz to 4.5/6.5/9 GHz, with bias-tees

• Test port: 2 or 4-port, 50 Ω

• Dynamic range (at max source power)

 135 dB (spec, 10 Hz IFBW)

 152 dB (typical, 3 Hz IFBW)

• Trace noise:

 0.0015 dBrms (spec, 10 kHz IFBW)

 0.0005 dBrms (typical, 10 kHz IFBW)

• Stability: 0.005 dB/°C (typical)

• Measurement speed (401 pts, 200 MHz span, uncorrected): 3 ms

• Source power:

 –90 to +15 dBm (spec)

 –110 to +17 dBm (typical)

• NOP: Max 100,001

• Channels: 200

• Markers: 15/trace

• Measurement parameters: S-parameters (single-ended, mixed-mode), Absolute power

• Multiport test set: E5092A

• Display: 12.1 inch
