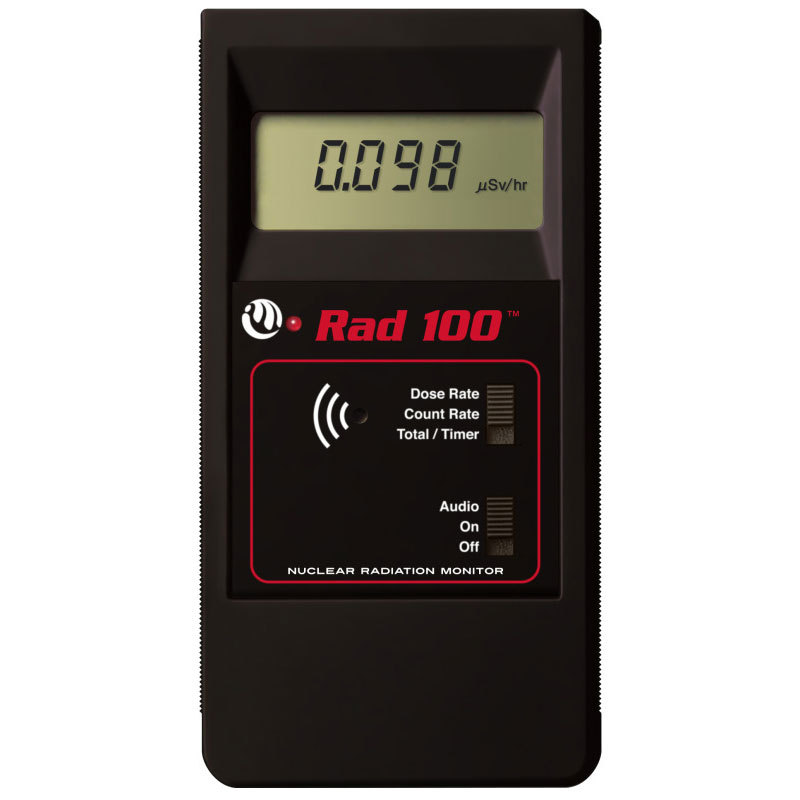

IMI Rad 100 Nuclear radiation monitor (CPM: 0-350,000)

Sensor:

Halogen-quenched Geiger-Mueller detector (LND712)

Mica end window density is 1.5-2.0 mg/cm²

Side wall is 0.012″ #446 stainless steel

Detects Alpha, Beta, Gamma, and X-radiation

Display: 4-digit liquid crystal display with mode indicators

Accuracy: ±10% typical; ±15% maximum

Alert: No Alert feature. If your intended application requires a user-adjustable Alert, we recommend the Radalert 100X

Audio: Beeper chirps for each count (can be muted)

Calibration: Cesium 137 (gamma)

Certifications: CE Certified, RoHS Compliant, and Meets WEEE standards

Count Light: Red LED flashes with each count

Designed & Manufactured: Designed and Manufactured in USA by IMI International Medcom, Inc.

Operating Range:

µSv/hr: .000-1,10                    CPM: 0-350,000

mR/hr: .000-110                    CPS: 0-3,500

Total: 0-9,999,000 counts    Timer: up to 40 hours

Options: Computer software and cable available

Operation Manual: Rad 100 Manual

Ports:

Output: Stereo 3.5 mm jack sends counts to computers, data loggers, other CMOS-compatible devices, and headphones, and educational data collection systems.0-9 V, 1 kOhm impedance.

Input: Mono 2.5 mm jack provides calibration input. 0-3.3 V, >5 μs width, rising edge triggered.

Power: One AA alkaline battery (one 9-volt alkaline battery on some models); average battery life typically exceeds 3600 hours at normal background radiation levels at sea level. Battery life decreases as radiation level rises.

Gamma Sensitivity: 1,000 CPM/mR/hr referenced to Cs-137

Size: 150 x 80 x 30 mm (5.9″ x 3.2″ x 1.2″)

Weight: 225 grams (8 oz) including battery

Specifications subject to change without notice.
