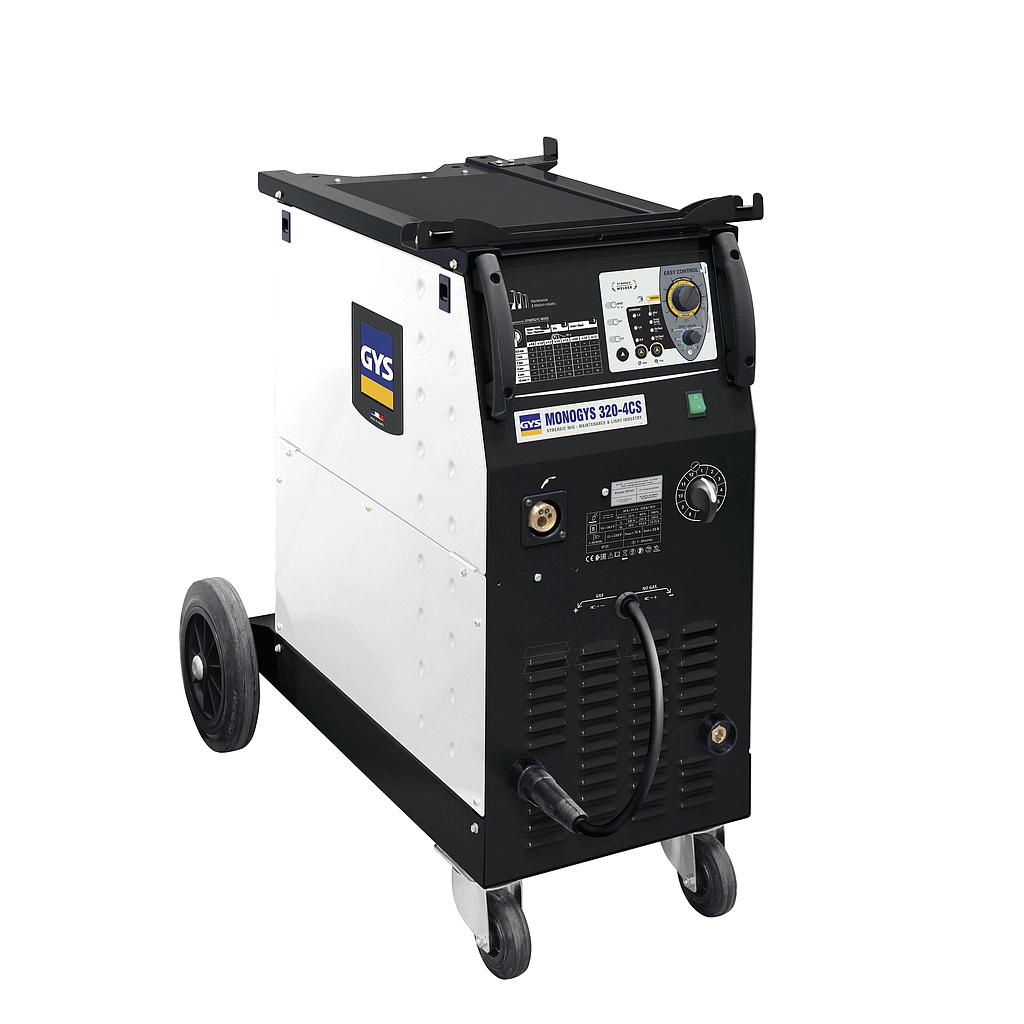

GYS MONOGYS 320-4CS MIG/MAG 溶接機 (1ph; 240V; 30-320A; no accessories)

The MONOGYS 320-4CS is the ideal «synergistic» semi-automatic welding machine for light fabrication, maintenance and industrial production workshops. The 320 monogys can weld steel, stainless steel, aluminium and capable of using 1.2mm wires with its 320 amp output

PRODUCT

In « Synergic » mode, setting is fast and simple.

The Micro processor controller will automatically set the optimum wire speed. This avoids complex set-up and ensures optimum welding parameters.

3 AVAILABLE FUNCTIONS

- 2T : Trigger Mode

- 4T : Trigger Mode, to weld during a long period without constantly pressing the trigger.

- Spot timer : tack/weld duration

2 FUNCTIONS : MANUAL OR SYNERGIC

- Synergic function: no need to adjust the wire speed.

Simply select:

• the wire type

• the wire ø

• the power

MONOGYS 320- 4CS sets the optimum wire speed for you. Save and activate the last welding settings (wire ø, wire type, mode)

- Manual function: traditional adjustment of the  wire speed.

Specifications:

Power supply: 240 V, 1 ph, 50/60 Hz

Fuse: 50 A

Rate current output: 30-320 A

Duty cycle (environment temp. at 40°C):

- Imax 320 A @ 25%

    210 A / 24.5 V @ 60%

    155 A / 21.75 V @ 100%

Motor speed: 1 - 20 m/min-4 rollers (2 motors)

Supported wire reels: Ø200-300 mm

Wire diameter:

    Steel, inox: 0.8 - 1.2 mm

    Aluminum: 1.0 - 1.2 mm

    Corred wire:0.9 - 1.2 mm

Voltage level: 12

No-load voltage: 42 V

Protection level: IP 21

Dimensions (L x w x h): 90 x 88 x 50 cm

Weight: 105 kg

Standard: IEC 60974-1/5/10 A

Original equipment (roller): 1.0/1.2 - B (Steel, inox)

Choose optional accessories when ordering
