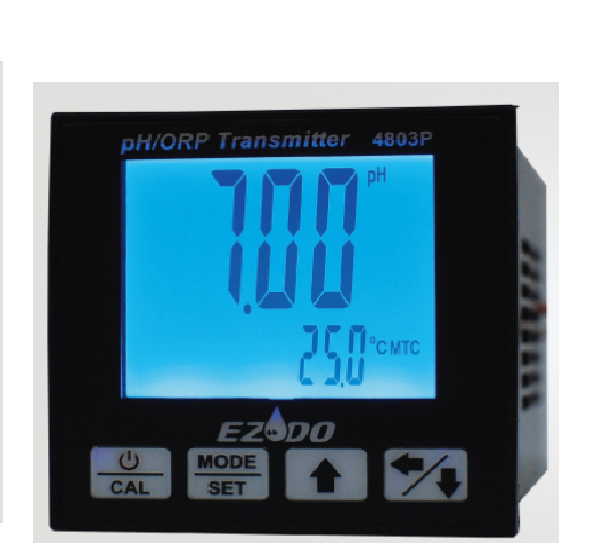

EZDO 4803P pH / ORP /温度 4-20mA送信機 (-2.00~16.00 pH, -1999~1999 mV, 0~110°C)

Name: EZDO 4803P pH / ORP /温度 4-20mA送信機 (-2.00~16.00 pH, -1999~1999 mV, 0~110°C)
Brand: EZDO
SKU: EZDO4803P
Availability: InStock

Range: -2.00~16.00 pH

Accuracy: ±0.01+1 digit

Resolution: 0.01 pH

Compensation: ATC: 0~100 °C

ORP

Range: -1999 ~ -200 mV; -199.9 ~ 499.9 mV; 500 ~ 1999 mV

Accuracy: ±2+1 digit

Resolution: 0.1/1 mV

Compensation:N/A

Temperature

Range: 0~110 °C

Accuracy: ±0.2+1 digit

Resolution: 0.1 °C

Temperature Compensation: ATC (0-100oC) via 30K Thermistor or MTC

Output: 4-20mA isolated current output

Signal output load: 500 Ω

Power supply: 9V DC or 100V~240V AC

Panel Cutout: 1/16th DIN 1.81 x 1.81" (46 x 46mm)

Meter Dimensions: 4.7 x 1.77 x 1.77" (105 x 45 x 45mm)

Accessories: 9V DC adaptor (onl

Details
