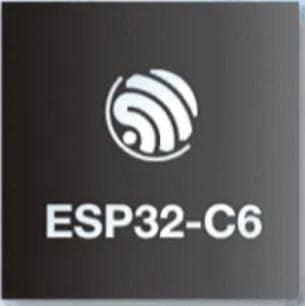

RF System on a Chip - SoC The ESP32-C6 SoC (System on Chip) supports Wi-Fi 6 in 2.4 GHz band, Bluetooth 5, Zigbee 3.0 and Thread 1.3. It consists of a high-performance (HP) 32-bit RISC-V processor, an low-power (LP) 32-bit RISC-V processor, wireless baseband and MAC (Wi-Fi, B Espressif Systems ESP32-C6FH8
Hãng sản xuất: Espressif Systems Model: ESP32-C6FH8 - Liên hệ
Gọi để có giá tốt
TP. Hà Nội: (024) 35.381.269
TP. Đà Nẵng: (023) 63.747.711
TP. Bắc Ninh: (0222)730.39.68
TP. HCM: (028) 38.119.636
Technology: Si
Sensitivity: - 106 dBm
Output Power: 21 dBm
Interface Type: GPIO, I2S, SPI, UART
Mounting Style: SMD/SMT
Maximum Data Rate: 250 kbps
Operating Frequency: 2.412 GHz to 2.484 GHz
Program Memory Size: 8 MB
Program Memory Type: Flash
Supply Voltage - Max: 3.6 V
Supply Voltage - Min: 3 V
Supply Current Receiving: 82 mA
Operating Temperature Range: - 40 C to + 105 C
Supply Current Transmitting: 354 mA
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 40 C
