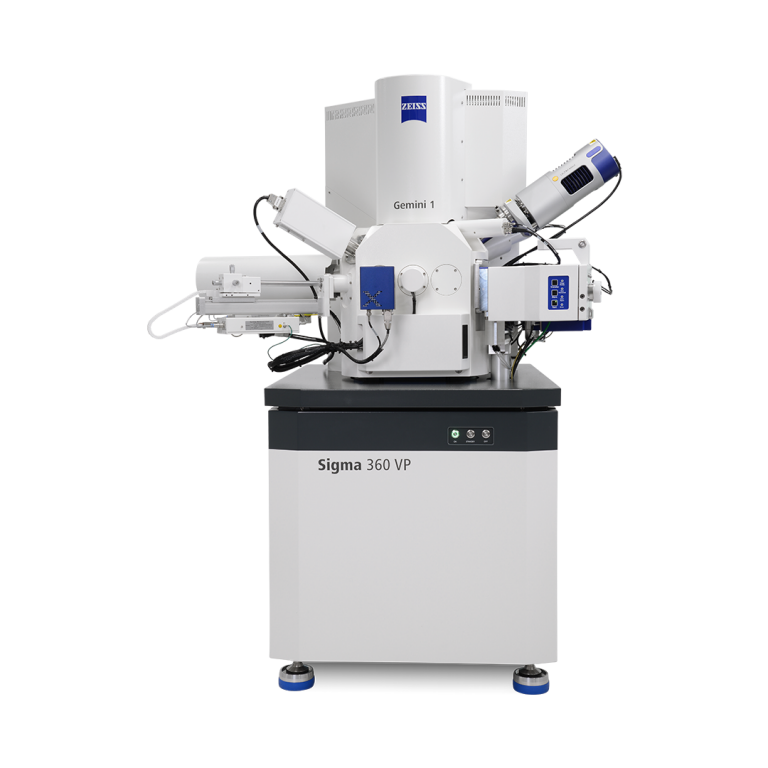

ZEISS Sigma 300 Electron Microscopy

Electron Source: Schottky Thermal Field Emitter Schottky Thermal Field Emitter

Resolution* at 30 kV (STEM): 1.0 nm

Resolution* at 15 kV: 0.9 nm

Resolution* at 1 kV: 1.3 nm

Resolution at 500 V: 1.9 nm

Resolution* at 30 kV: (VP Mode) 2.0 nm

Accelerating Voltage: 0.02 – 30 kV

Magnification: 12× – 1,000,000×

Field of View:   4.6 mm

Probe Current 3 pA - 20 nA (100 nA optional)

Image Framestore: 32 k × 24 k pixels

Type of Diode: Silicon based diode for direct detection of backscattered electrons, one segment

Image Polarity: Configurable. Default: “TEM” like contrast

Optimum Working Distance: 4 – 6 mm

Energy Range: < = 7 keV

Optimum Primary Beam Current: 50 pA – 1nA

Mechanical Module: Highly stable mechanical module with acoustic dampening cover

Easy Servicability: Diode exchange is plug & play

Protection:

Protective cover to avoid charging and damage to the diode.

Integrated protection during plasma cleaning of sample/chamber.

Lifetime: Expected lifespan of detector diode: 2 years under average usage conditions

System Integration:

Collision control with ZEISS hardware implemented.

Acceleration voltage limited to <7 kV.

EO table correction is applied.

User Interface: Default settings optimized for ease of use.

Insertion and Retraction: Pneumatic
