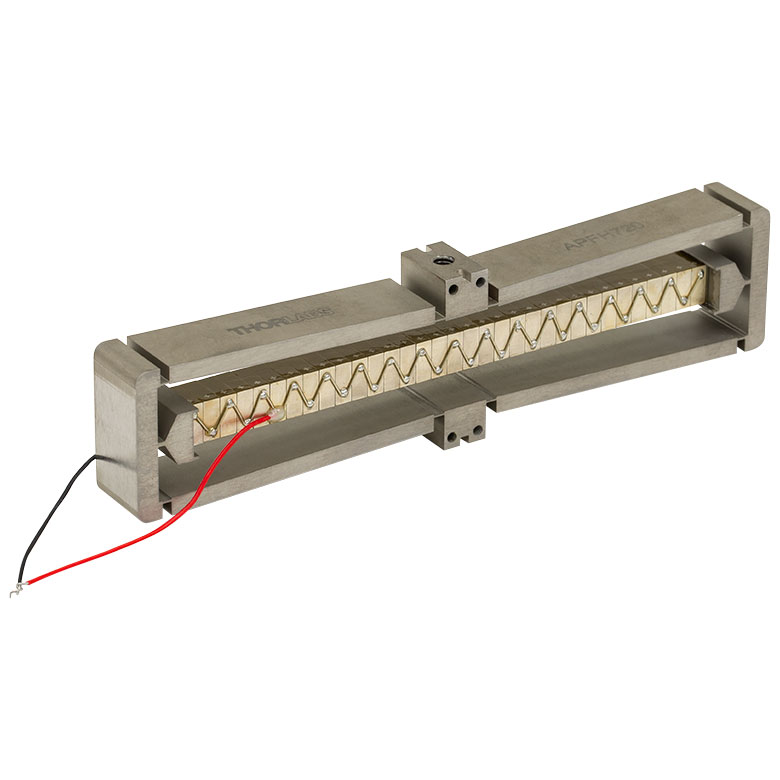

THORLABS APF710 Amplified Piezoelectric Actuators (150 V, 1500 µm Max)
Manufacturer: THORLABS Model: APF710 - Request a Quotation
- Request a Quotation
- Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Drive Voltage Range (Max): -30 to 150 V
Mounting Options: Tapped Holes on Top, Bottom, Front, and Back
Displacement (Free Stroke): 1500 µm
Outer Dimensions(b): 18.0 x 10.0 x 100.0 mm (0.71" x 0.39" x 3.94")
Max Pulling Force: 55 N(d)
Max Pushing Force: 20 N(e)
Resonant Frequency (c): 185 Hz
Capacitance: 16µF
(b) Not Including Wires
(c) 5 g, On-Axis Load
(d) When Increasing Voltage
(e)When Decreasing Voltage
