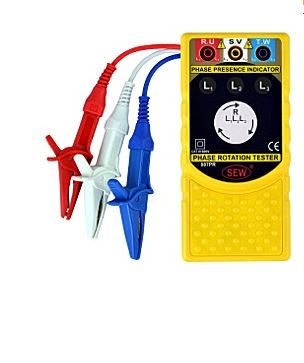

SEW 887 PR LCD Phase Sequence Indicator (Contact Type)

Manufacturer: SEW
Model: 887 PR
Origin: Taiwan
Contact
- Request a Quotation
Call for the best price

Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636

Specifications
Manufacturer Info

ELECTRICAL

Determination of the Phase Presence

Nominal Voltage for Phase Presence

Indication (the voltage required for the

LCD L1, L2, L3 indicators to come on) From 40Vac to 500Vac.

Frequency range From 15Hz to 400Hz.

Determination of the Phases Rotary Field Direction:

Direction Indication by LCD Display(the

voltage required to have the LCD

Direction Arrows to indicates and the

L1 L2 L3 or L3 L2 L1 indicators to show) From 40 to 500Vac.

Frequency range From 15 Hz to 400Hz

Dimensions 150(L) × 72(W) × 33.8(D)mm

Material Poly carbonate / ABS

Weight

(less Soft pouch) Approx. 158.5g

Details

FEATURES

● Indicates phase rotation.
● Indicates phase presence.
● No battery required.
● Phase rotation phase presence indicated on large
    liquid crystal display.
● Small, rugged enclosure.
● Color coded test leads.
● Phase presence indication from as low as 40Vac to
   as high as 500Vac.
● Fused.
● Lightweight, robust and compact.
● EN 61010-1 CAT III 500V
   EN 61010-2-032

SPECIFICATIONS

ELECTRICAL
Determination of the Phase Presence
Nominal Voltage for Phase Presence Indication (the voltage required for the LCD L1, L2, L3 indicators to come on)	From 40Vac to 500Vac.
Frequency range	From 15Hz to 400Hz.
Determination of the Phases Rotary Field Direction:
Direction Indication by LCD Display(the voltage required to have the LCD Direction Arrows to indicates and the L1 L2 L3 or L3 L2 L1 indicators to show)	From 40 to 500Vac.
Frequency range	From 15 Hz to 400Hz
Protection
Over load	700V(between all terminals)
Over voltage	Class III - 700V towards ground
Fuses	2 × 0.5A, 6 × 31mm, HBC, 600V Fast Blow
General
Current consumption	Max. 3mA
MECHANICAL
Dimensions	150(L) × 72(W) × 33.8(D)mm
Material	Poly carbonate / ABS
Weight (less Soft pouch)	Approx. 158.5g
Display	LCD
ENVIRONMENTAL
Operating temperature range	1°C to + 55°C not in full sun!!!
Storage temperature	-20°C to + 70°C
