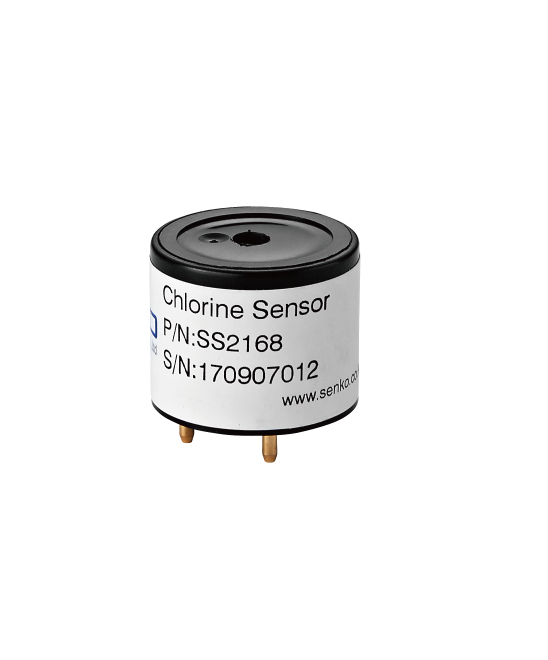

SENKO SS2168 Chlorine Gas Sensor (0-20 ppm)
Manufacturer: SENKO Model: SS2168 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Output Signal: - 700±250 nA / ppm
Typical Baseline Range (pure air): ±2 ppm Cl2 equivalent
T90 Response Time: <30 seconds
Measurement Range: 0-20 ppm
Maximum Overload: 50 ppm
Linearity: Linear
Repeatability: 2%
Recommended Load Resistor: 10 ohms
Resolution (Electronics Dependent): < 0.1 ppm typical
Environmental
Temperature Range Continuous: -20℃ to +50℃
Pressure Range: 800 to 1200 mbar
Operating Humidity Range: 15% to 90% Rh
Life Time
Long Term Output Drift: <10% per annum
Recommended Storage Temp: 0℃ to 20℃
Expected Operating Life: >24 months in air
Intrinsic Safety Data
Maximum at 20ppm: 40mA
Maximum o/c Voltage: <1.0V
Maximum s/c Current: <0.1A
