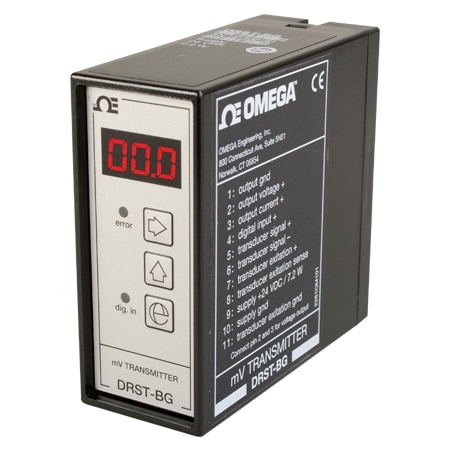

OMEGA DRST-BG DIN RAIL Signal Conditioner for Load Cells (Voltage, -40 to 100 mV dc)

Width: 35.5 mm

Height: 80.5 mm

Length: 84.5 mm

Offset: Max Offset: 70 %

Weight: 130 g

Mounting: DIN Rail Mount

Stability: Load Stability: 0.01% of span/100 Ω

Input Type: Voltage

Update Rate: 20 ms

Display Type: LED

EMC Standard: NAMUR NE 21

Output Value: Process

Output Detail: Min. Signal Range: 5 mA Current Limit: < 23 mA Voltage Output Through Internal shunt: See manual for details Of Span: = of the presently selected range

Output Signal: Current

Response Time: 0.06 to 999 s

Approvals Note: EMC 2014/30/EU EAC: TR-CU 020/2011

Supply Voltage: 19.2 to 28.8 Vdc

Linearity Error: < 0.1% of span

Load Resistance: 230 mA Max;Current Output : 600 Ω

Input Range Note: Max. Offset: 70% of selec. max. value;Voltage input;Min. Measurement Range (Span): 10 mV;Overrange: 0 to 999% of selected measurement range;NPN, Digital Input: Pull up 24 Vdc / 6.9 mA;PNP, Digital Input: Pull down 0 Vdc/6.9 mA;Trig Level Low, NPN/PNP: < 6 Vdc;Trig Level High, NPN/PNP: > 10.5 Vdc;Pulse Length: > 30 ms

Number of Inputs: 1

Electrical Output: 0 to 20 mA

Enclosure Ratings: IP50

Noise Calibration: >60 dB

Power Consumption: 7.2 W

Power Dissipation: 2.2 W

Relative Humidity: <95% RH

Supply Power Note: Effect of Supply Voltage Change: < ±0.002% of span/%V Supply: 5 to 13 Vdc

Supply Power Type: DC

Signal Dynamics Input: 17 bit

Signal Dynamics Output: 16 bit

Temperature Coefficient: <±0.01% of span/°C

Voltage Measurement Range: -40 to 100 mV dc

Operating Temperature, Max: 60 °C

Operating Temperature, Min: -20 °C

Calibration Temperature, Max: 28 °C

Calibration Temperature, Min: 20 °C
