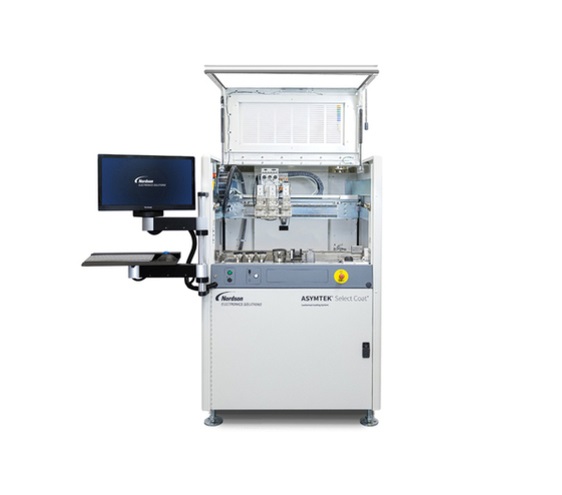

Nordson Select Coat SL-1040 Conformal coating system (1.0 m/s; 0.5 m/s)

Motion System

Type: Closed-loop servo motors

configurations: standard products

X-Travel: 517.5 mm

Y-Travel: 537.5 mm

Z-Travel: 100 mm maximum

X-Y Velocity: 1.0 m/s (39.4 in./s) (max)

X-Y Acceleration: 1 g peak (10 m/s2) (max)

Z-Axis Velocity: 0.5 m/s (max)

X-Y Repeatability: 45 µm @ 3 sigma at standard payload (4.5 kg)

Z-Axis Repeatability: ±100 µm, minimum Cmk of 1.67 at standard payload (4.5 kg)

X-Y Resolution: 2.5 µm

Z-Axis Resolution: 2.5 µm

Positional Accuracy: ±100 µm, minimum Cmk of 1.67 at standard payload (4.5 kg)

Conveyor

Inline: Single-lane standard chain conveyor

Motor-Driven Width Adjustment: 35 to 485 mm (1.4 to 19.1 in.)

Maximum Clearance: 100 mm (4 in.) above and below PCB

Maximum Pallet/PCB Weight: 5 kg (11 lbs.)

Computer: Industrial PC with monitor, keyboard, and trackball

Software EasyCoat® 6: Windows® 10 operating system

Fluid Delivery Methods:

Precise Non-Atomized Conformal Coating: Select Coat® SC-280 Film Coater (circulating and non-circulating)

Versatile, Atomized Spray Coating:

Select Coat® SC-300 Multi-Mode applicator

Select Coat® SC-350 Select Spray applicator

Highly Selective, Precision Jet Coating:

SC-400 PreciseCoat® conformal coating jet

SC-450 PreciseCoat® conformal coating jet

Versatile Valves: DV-01, DV-05, DV-09 valves

Facilities Requirements:

System Footprint:

1000 mm width x 1330 mm depth (39.3 x 52.4 in.)

Computer keyboard/monitor occupy additional 605 (23.8 in.) in the front

Lower front door requires 855 mm (33.7 in.) clearance to open.

1000 mm clearance in the rear recommended

Air Supply: 620 kPa (90 psi. 6.2 Bar), up to 0.34 m3/min (12 SCFM); ¼-in. male NPT

connection type

Ventilation Rate, minimum: 0.094 m3/s (200 SCFM @ 1.0 in. water column)

Duct: 152.4 mm (6.0 in.)

Optional Nitrogen Source: 410 kPa (60 psi, 4.1 Bar) @ 0.014 m3/min (0.84 m3/hr 0.5 SCFM); for moisture sensitive materials

Main Power: 100-240 VAC, 10 A (max), 50/60 Hz

Note: System can run on 120 VAC without heater option installed.

Noise: Peak ≤ 74.0 dBA; Average ≤ 73 dBA (with two applicators)

System Weight: 500 kg (1102 lb) max

Standards Compliance: SMEMA, CE, NFPA 79, SEMI, EN ISO 13849-1 Category 3
