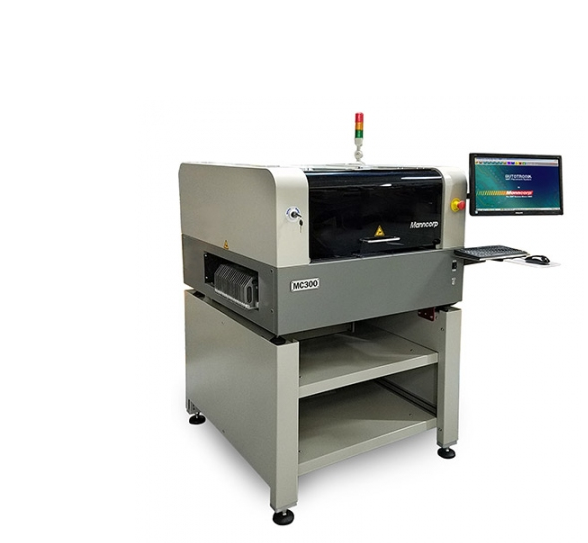

Manncorp MC-300 Automatic Pick and Place

Manufacturer: Manncorp - US

Model: MC-300

Origin: China

Warranty: 12 months

Placement Specifications

Number of Placement Heads: 1

Placement Rate (Max.): 1,800 CPH no vision, 1,000 CPH w/vision

Minimum Component Size: 0402

Maximum Component Size: 28 mm x 28 mm

Minimum Component Lead Pitch: 25 mil w/Optional Vision Camera

BGA/CSP Placement Capability: Yes - Standard

Alignment Method: Optional Vision Camera

Pick Up Specifications

Tool Changer: Optional

Integral Vacuum: Yes

PCB Specifications

PCB Loading Method: Manual

Max. Placement Area: 300 mm x 350 mm (11.8" x 13.7")

Fiducial Recognition/ Coordinate Correction: Yes

Feeder Capacity

Maximum Number of Feeder Ports: 64

Maximum Number of Waffle Trays: 1 (Waffle tray reduce placement area)

Programming

Operating System: Windows® Based

PC, Keyboard, Mouse: Yes

Monitor: Flat LCD

Teaching Camera: Yes

Numeric Data Entry: Yes

CAD Download: Yes

Step and Repeat for Matrix Boards: Yes

Bar Code Reader for Feeders & Packaging: Yes

MIS and Optimization Functions: Yes

Off-Line Programming: Yes

Mechanical Specifications

X-Y Axis Drive Mechanism: Belt

X-Y Axis Encoding: Rotary Encoder

Z Axis Encoding: Rotary

Θ Axis Encoding: Rotary

Physical Specifications

Overall Dimensions (Approx. L x W x H): 952 mm L x 977.9 mm W x 1447.8 mm H (37 1/2" x 38 1/2" x 57")

Approximate Net Weight: 408 Kg (900 lbs.) with Stand

Facility Requirements

Standard Voltage: 220 VAC, 50/60 Hz

Air Pressure: 75 psi, 5 bar

Service and Support

Remote Diagnostics: Ethernet

Warranty (Major Components): 1 Year
