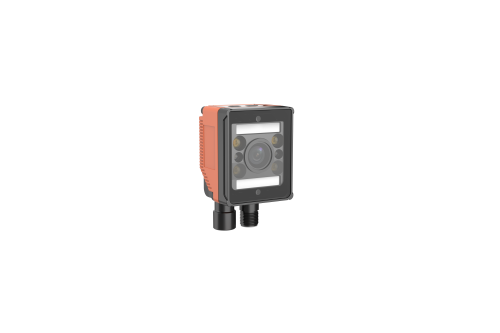

iRAYPLE R4013MG-12M-BGG01E Code Reader (1280 × 1024; 60 codes/s)

Basic

Resolution: 1280 × 1024

Max. Frame rate: 60 fps

Shutter Mode: Global

Lens Mount: M12, auto focus

Trigger Mode: Software trigger/External trigger/Free run modes

Software: EasyID

Certifications: CE，KC

Function:

lD: Code 39/Code 93/Code128/CodaBar/EAN8/EAN13/UPCA/UPCE/ITF25/2of5（Industrial2of5）/standard25/GS1-128 etc. and 2D: Data Matrix/MQR/GS1 DM/GS1QR etc.;

Quality Evaluation: ISO/IEC 29158(AIM-DPM), ISO/IEC 15415, ISO/IEC 15416）

Performance

Focal Length: 12mm

Working Distance: 50-500mm

Field of View: 64×51 mm（working distance:150mm）

Max. Read Speed: 60 codes/s

Light Source Type: Blue （Difused/Polarized/Non-polarized）

Port

Connector: 2 Industrial connectors support Ethernet and GPIO

Network Port: 100M Ethernet

GPIO Interface: RS232, 2 Opto-isolated inputs and 3 Opto-isolated outputs

Communication Mode: RS232, Ethernet

Communication protocol: SDK,TCP Client,TCP Server,FTP,RS232,Profinet,Modbus,EtherNet/IP,MC(SLMP),FINS/UDP,FINS/TCP

LED Indicator: Power,Ethernet,Result

Power

Power Supply: 9~26V DC, 1.5A input, suitable for industrial environment

Power Consumption: <5W

Structure

Product Dimensions: 47mm×58mm×38mm(not including connector)

Net Weight: <180 g

Protection: IP65

Casing Material: Aluminum alloy + Front cover

Environment

Operating Temperature: -20℃～+50℃

Operating Humidity: 20%～95%(no condensation)

Storage Temperature: -30℃～+70℃
