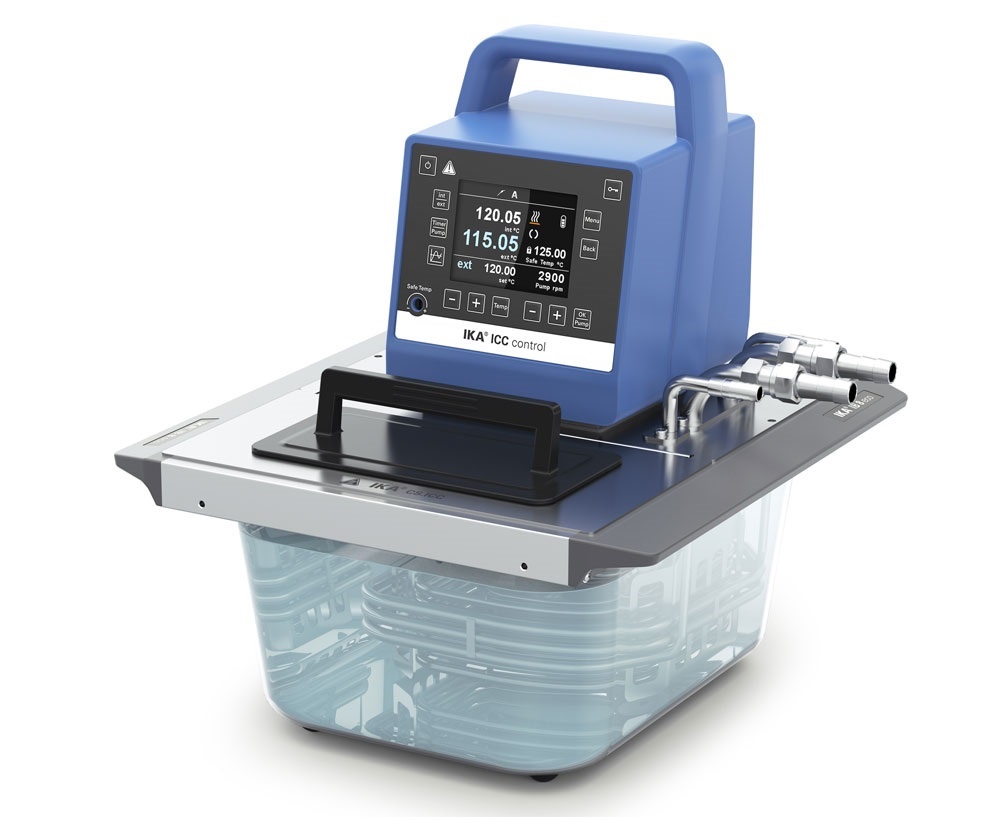

IKA ICC control eco 8 c (0008036100) Temperature Control

Appliance type: Compact immersion circulators

Class designation acc. DIN 12876: III

Identification according to DIN 12876: FL

Heat output: 2000 W

Working temperature: room temp. +10K @1000rpm - 150 °C

Operating temperature min. (with external cooling): -20 °C

Temperature display: yes

Temperature control: PT 100

Working temperature sensor: PT 100

Safety temperature sensor: PT1000

Working temperature display: TFT

Safety temperature display: TFT

Temperature stability DIN 12876: 0.01 ±K

Connection for ext. temperature sensor: PT 100

Display resolution: 0.1 K

Display for operation with ext. sensor: yes

Set temperature resolution: 0.1 ±K

Warning function optical: yes

Warning function acoustic: yes

Warning function excess temperature: yes

Adjustable safety circuit: 0 - 160 °C

Sub-level protection: yes

Over-level protection: yes

Pump type: Pressure- / suction pump

Pump capacity adjustable: yes

Pump pressure max. (0 liters discharge flow): 0.3 bar

Pressure pump (suction side) (0 liter flow): 0.2 bar

Flow rate max. (0 bar back pressure): 18 l/min

Bath depth min.: 150 mm

Calibration option: yes

Appliance fastener: clamp

Technical data complies with the standard: DIN 12876

Permissible ON time: 100 %

Dimensions (W x H x D): 145 x 340 x 200 mm

Weight: 3.75 kg

Permissible ambient temperature: 5 - 40 °C

Permissible relative humidity: 80 %

Protection class according to DIN EN 60529: IP 21

RS 232 interface: yes

USB interface: yes

Voltage: 230 / 115 V

Frequency: 50/60 Hz

Power input: 2100 W
