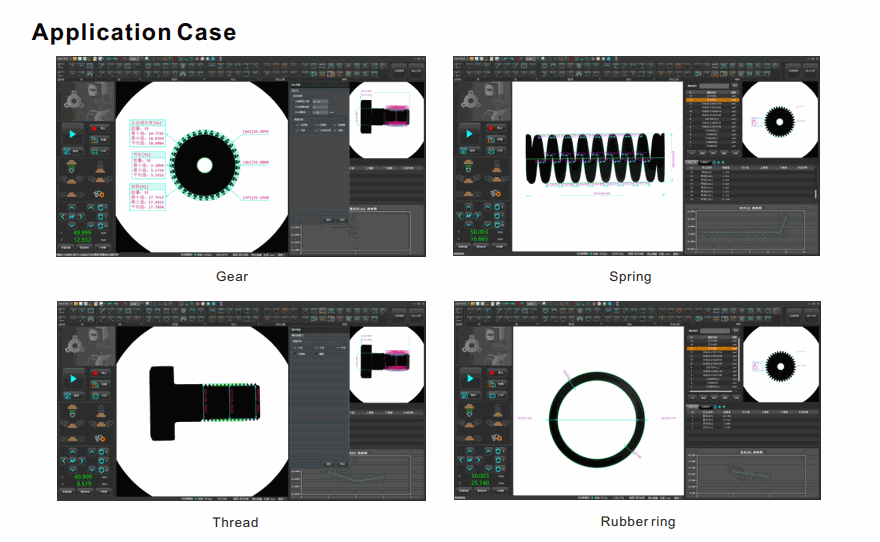

Hoyamo VX3200 Instant Vision Measurement System (5M CMOS)

Image Sensor: 5M CMOS

Monitor:

Built-in: 10.4" LCD (XGA 1024X768)

Outside: 24" LCD (XGA 1920X1080)

Acceptance Lens: Double Telecentric Lens

Light:

Casting Illumination System: Four-segment illumination(White Light)

Transmission Illumination System: Telecentric transmission illumination(Green Light)

Field:

Large Field: 200x200mm(4 Angles R50)

High Precision: -

Repeatability of Image Meas.:

Large Field:

Without Stitching: ±l µm

With Stitching: ±2 µm

High precision:

Without Stitching: -

With Stitching: -

Accuracy of Image Meas.:

Large Field:

Without Stitching: ±5 µm

With Stitching: ±(7+0.02L) µm

High precision:

Without Stitching: -

With Stitching: -

Height Meas.(physical probe) (optional):

Measuring range (X*Y): 60x150mm

Max depth: 75mm

Dia. of probe: 1mm

Measuring force: 0.13N

Repeatability: ±3 µm

Accuracy: ±(7+0.02L) µm

Resolution: 0.1 µm

XY object table:

X travel range: 110mm

Y travel range: 110mm

loading capacity: 5kg

Z axis travel range: 75mm (Motorized)

Size: 531x386x731mm (LxWxH)

Weight: 48kg

Input: AC 100-240V, 50/60Hz, 2A

Working enviroment: temp. 10 °C-35 °C, humidity: 20-80%, vibration <0.002g, less than 15Hz
