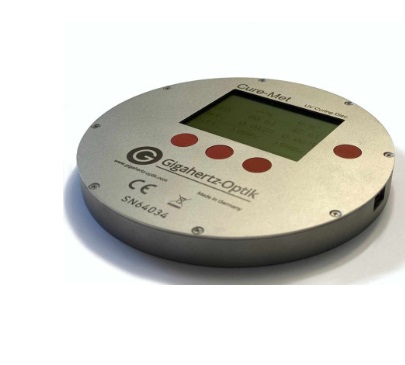

Gigahertz-Optik Cure-Met-UVA Flat UV Curing Disc Radiometer (328 ~ 382 nm)

-Measurement range: 1 mW/cm² to 10 W/cm². Different LED wavelengths and UVA sources

-Typical applications: Monitoring and regulation of LED emitters in UV-A and blue light radiation curing, conveyor belt application, etc.

-Calibration: Irradiance calibration (W/cm²) in the UVA range from 328 nm to 382 nm.

Factory calibration. Traceable to international calibration standards. ISO 17025 calibration on request.

-Spectral responsivity: 328 to 382 nm

-DC: 16 bit

-Housing:

Diameter: 117.6 mm

Height: 12.7 mm

-f2 (directional response/cosine error): <10%

-Data logger: 32000 data points possible with 25 Hz or 2500 Hz

-Display: Graphical LCD with backlight, 128 px x 64 px

-Temperature range: (-10 to 60) °C

-Power Supply:

USB interface (Mini-B): 5 VDC, 500 mA

Lithium polymer battery charged by USB interface

-Battery runtime:

10 hours (backlight on, no operation)

6 hours (backlight on, full operation)

Note: Backlight is automatically switched off during measurements which extends the battery life.
