Eijkelkamp 04.23 Beeker sediment core sampler (Extended set, 5-8 m)

Description

With the Beeker sampler, you can take undisturbed sediment samples in a fast and certain way from watery sediment to unconsolidated sand to a depth of 5 metres. Even in watery conditions, the sample will not be lost thanks to the closable cutting head. Using additional extension rods, sampling to greater depths is possible in certain cases. The Beeker sediment core sampler works almost the same way as a Multisampler / piston sampler, but with a lockable head with inflated membrane.

Method

The samples are taken in a transparent tube which allows you to make a clear profile description. The sampler has long sampling tubes of 1 metre. The piston can be operated directly with a rod, so that the sample can be pushed out of the sampler on site into a sample bucket. The apparatus is pushed or hammered into the sludge. To avoid compaction of the layers, a piston is held at a stationary position relative to the sludge. The sample can then be emptied into a clean stainless-steel bucket, or layer by layer in wide necked sample jar. It is not necessary to assemble and disassemble the apparatus with every new sample. This set comes in an aluminium transport case.

Extended set

In addition to the standard set (04.23.SA), an extended set (04.23.SB) is also available for sampling and discharging core samples with a length of 1 metre or 1.5 metres, in bucket or jars and to transport and divide in subsamples with water pressure. This set is suitable for sampling of submerged soils to a depth of 5 metres from very aqueous sediments to unconsolidated sand.

If you have any questions, please contact one of our experts.

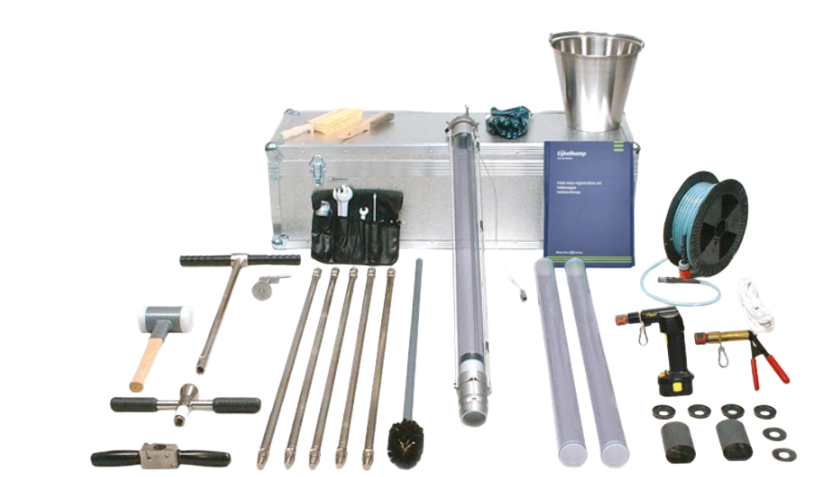

Set contains

Transparent tube of 1 metre

Piston + piston rod

Battery powered pressure

Vacuum pumps with extension hose

Hammer

Handles

Extension rods

Non-stretch cord

Sample bucket

Brush and accessories

Aluminium transport case

Manual

Brochure
