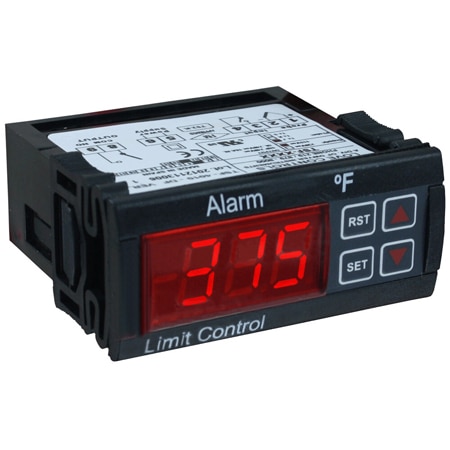

Dwyer TSF-4041-DF UL Thermocouple Limit Alarm w/ Relay Output for Gas Oven Control (Thermocouple, ± 1 %, LED, J: 0 to 700 °C ; K: 0 to 999 °C)
Manufacturer: Dwyer Model: TSF-4041-DF - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Weight: 2.3 oz
Accuracy: ± 1 %
Compliance: CE, cURus
Resolution: 1°C
Switch Note: NO SPST relay rated 16 A @ 240 VAC resistive
Switch Type: SPST NO
Display Note: 3-digit, red, 1/2˝ (12.7 mm) digits, plus sign.
Display Type: LED
Control Input: Limit alarm
Memory Backup: Non-Volatile
Switch Rating: 16 A @ 240 Vac
Control Output: Relay
Supply Voltage: 24 Vac/Vdc
Number of Digits: 3
Enclosure Ratings: IP64
Horsepower Rating: 1 hp
Power Consumption: 4 VA @ 230 Vac
Supply Power Type: AC/DC
Thermocouple Type: J, K
Temperature Sensor Type: Thermocouple
Storage Temperature, Max: 176 °F
Storage Temperature, Min: -4 °F
Operating Temperature, Max: 140 °F
Operating Temperature, Min: 32 °F
Temperature Measurement Range: J: 0 to 700 °C ; K: 0 to 999 °C
