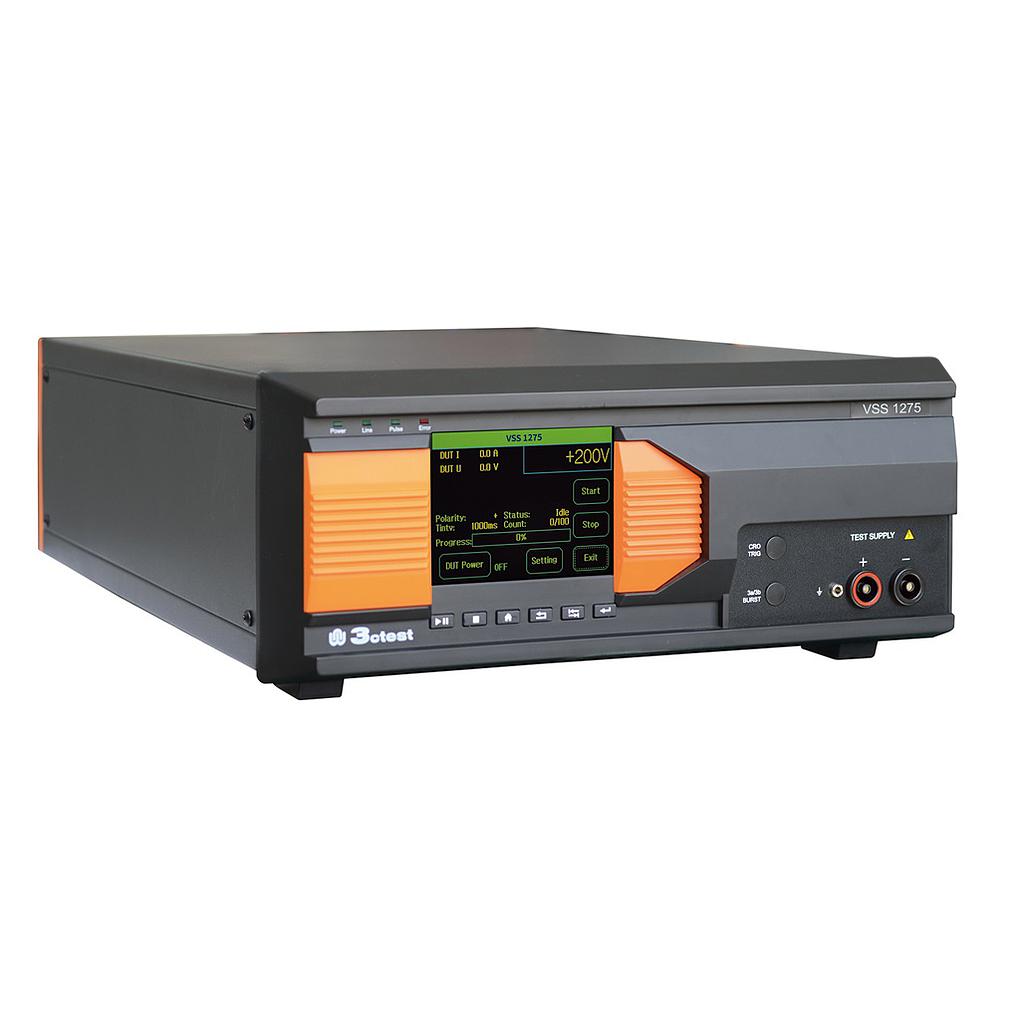

3ctest VSS 1275 Spike Surge Voltage Simulator (30~300V)

- Surge Waveform Technical Parameters:

Surge Voltage: 30 V ~ 230 V

Surge Energy: 470 J（＜60J for 70 V voltage）

Rise Time: 1~10 ms

Duration: 50 ms (-0/+5)

Generator Impedance: 500 mΩ（-25/+0 ）

Repetition: 5 s ~ 99 s

Counter: 1~9999

EUT Power Supply: Built-in 28 V, 30 A DC power

Built-in CDN: 30 A

External CDN (option): Max. 400 A

- Spike Waveform Technical Parameters:

Spike Voltage: 50 V ~ 300 V

Spike Energy: ＜3 J

Rise Time: <50 ns

Polarity: Positive, Negative

Repetition: 5 ms~1000 ms

Counter: 1~9999

Oscillatory Frequency: 100 kHz ~ 500 kHz

EUT Power Supply: Built-in 28 V 30 A DC power

Built-in CDN: 30 A

External CDN (option): Max. 400 A

- General Parameters:

Display Screen: 5.7” touch screen

Working Power: AC 110 V/220V（±10%）,50 Hz/60 Hz (AC 220 V 50 Hz in Mainland China)

Fuse: 6 A

Dimension: 19”/4U

Weight: Approx. 28 kg

Ambient Temperature: 15 ℃ ~ 35℃

Relative Humidity: 45%–75%

Atmospheric Pressure: 86 kPa–106 kPa
