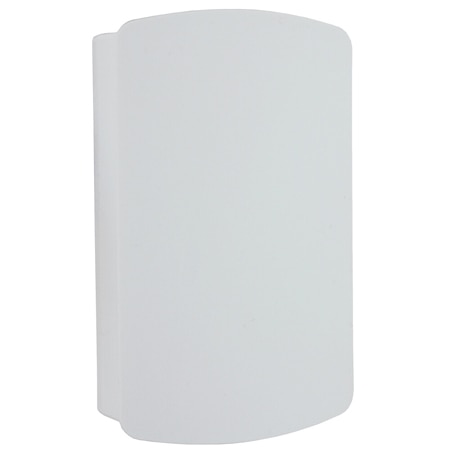

Bộ truyền CO2 kèm giám sát nhiệt độ, đạt chứng nhận LEED®, ngõ ra đa năng Dwyer CDSN (NDIR, 2000 ppm)
Hãng sản xuất: Dwyer Model: CDSN - Liên hệ
Gọi để có giá tốt
TP. Hà Nội: (024) 35.381.269
TP. Đà Nẵng: (023) 63.747.711
TP. Bắc Ninh: (0222)730.39.68
TP. HCM: (028) 38.119.636
Materials: ABS
Compliance: CE
Sensor Life: 15 Years
Sensor Type: NDIR
Switch Type: N/A
Display Type: N/A
Warm Up Time: <2 mins Operational; 10 mins Max Accuracy
Output Detail: Field selectable; Current: 4-20 mA or 0-20 mA; Voltage: 0-5 V, 1-5 V, 0-10 V, or 2-10 V
Output Signal: Current, Voltage
Supply Voltage: 24 Vac/Vdc
Measurement Type: Carbon Dioxide
Electrical Output: 0 to 20 mA
Enclosure Ratings: IP30, NEMA Type 1
Relative Humidity: 0 to 85% RH Non-Condensing
Supply Power Note: ± 20%, 50/60 Hz
Supply Power Type: AC/DC
Mounting Orientation: N/A
Temperature Accuracy: ± 1 °C
Voltage Output Range: 0 to 5 V, 1 to 5 V, 0 to 10 V, 2 to 10 V
Electrical Connection: Screw Terminal
Carbon Dioxide Accuracy: ± 40 PPM + 3% rdg
Storage Temperature, Max: 158 °F
Storage Temperature, Min: -22 °F
Temperature Output Range: N/A
Operating Temperature, Max: 122 °F
Operating Temperature, Min: 32 °F
Carbon Dioxide Response Time: 120 s (τ90)
Carbon Dioxide Concentration, Max: 2000 ppm
Carbon Dioxide Concentration, Min: 0 ppm
