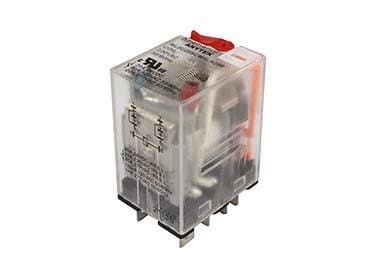

Flag Industrial Relay Industrial General-Purpose RelayContact Form : DPDT Contact Point Load :20ATerminal Type : Mounted on PCBCase Type : Standard shell Manual Test ButtonRotary Button With Self-locking FunctionLED IndicatorDC:24 VDC Amphenol Anytek AL2C20PCM4LD02400G
Hãng sản xuất: Amphenol Anytek Model: AL2C20PCM4LD02400G - Liên hệ
Gọi để có giá tốt
TP. Hà Nội: (024) 35.381.269
TP. Đà Nẵng: (023) 63.747.711
TP. Bắc Ninh: (0222)730.39.68
TP. HCM: (028) 38.119.636
Width: 21.5 mm
Height: 36 mm
Length: 28 mm
Coil Type: Non-Latching
Coil Voltage: 24 VDC
Current Rating: 20 A
Mounting Style: PCB Mount
Coil Resistance: 650 Ohms
Coil Termination: Solder Pin
Contact Material: Silver Tin
Power Consumption: 890 mW to 1.1 W
Switching Voltage: 28 VDC, 277 VAC
Relay Contact Form: DPDT
Contact Termination: Solder Pin
