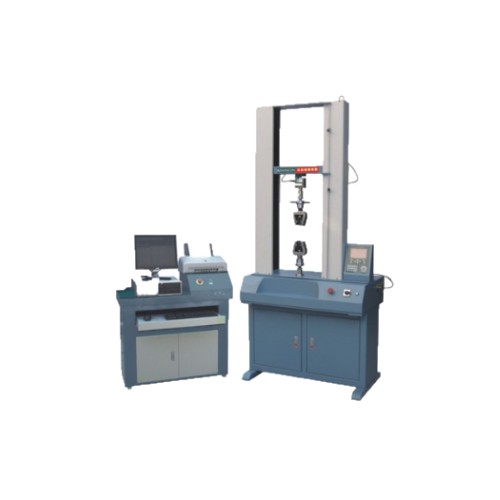

Zhongzhi CZ-8000B 伺服控制拉伸试验机 (100N - 30kN)

Capacity (Optional): 100N, 250N, 500N, 1kN, 2.5kN, 5kN, 10kN, 20kN,30kN

Unit (switchable): N,kN,kgf,Lbf,MPa,Lbf/In²,kgf/mm²

Load Resolution: 1/500,000 (0.5 Leve) / 1/250,000 (1 Leve)

Accuracy Grade of Machine: 0.5 Level/ 1 Level

Load Magnifying Rate: Section-less

Max Stroke (Exclude the Grips): 850 mm (Standard), 1050 mm (Heighten) others (Customized)

Effective Width: 400, others (Customized)

Test speed: 1-500 mm/min, others (Customized)

Speed ​​accuracy: ± 0.25% (0.5 Leve) / ± 0.5% (1 Leve)

Displacement Resolution: 0.00004mm

Software: Random controller + standard control software

Motor: Servo motor

Transmission Rod: High accuracy of ball screw

Main Unit Dimension (WxDxH): Standard: 973x553x2095 mm

                                                   Heighten: 973x553x2295 mm

Power: AC220/50HZ 10A or specified by user
