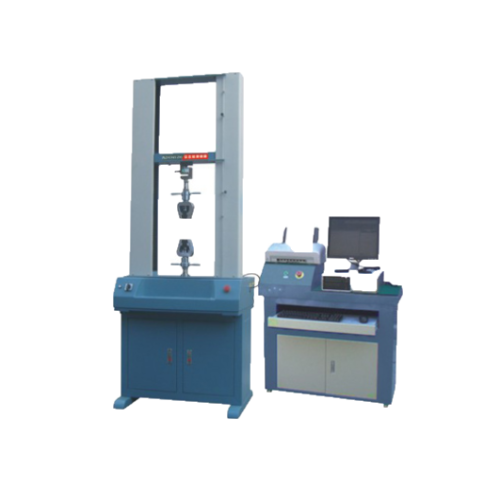

Zhongzhi CZ-8000 伺服控制拉伸试验机 (100N - 30kN)
制造商: Zhongzhi Model: CZ-8000 - 报价要求
- 联系
Capacity (Optional): 100N, 250N, 500N, 1kN, 2.5kN, 5kN, 10kN, 20kN,30kN
Unit (switchable): N,kN,kgf,Lbf,MPa,Lbf/In²,kgf/mm²
Load Resolution: 1/500,000 (0.5 Leve) / 1/250,000 (1 Leve)
Accuracy Grade of Machine: 0.5 Level/ 1 Level
Load Magnifying Rate: Section-less
Max Stroke (Exclude the Grips): 850 mm (Standard), 1050 mm (Heighten) others (Customized)
Effective Width: 400, others (Customized)
Test speed: 1-500 mm/min, others (Customized)
Speed accuracy: ± 0.25% (0.5 Leve) / ± 0.5% (1 Leve)
Displacement Resolution: 0.00004mm
Software: Closed-loop control software
Motor: Servo motor
Transmission Rod: High accuracy of ball screw
Main Unit Dimension (WxDxH): Standard: 793x553x2095 mm
Heighten: 793x553x2295 mm
Power: AC220/50HZ 10A or specified by user
