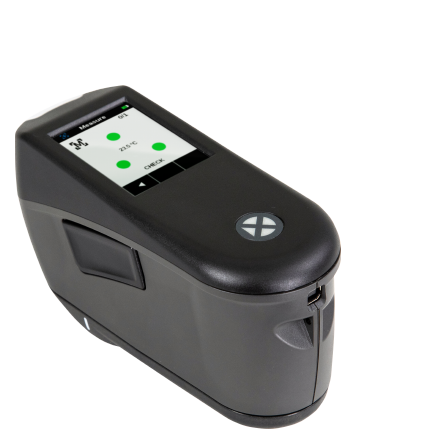

Xrite MA-5 QC 便携式多角度分光计 (400 nm -700 nm; ≈12 mm)

3rd Party Software Supported: MA 94 emulation mode

Battery: Lithium Ion Battery

Battery Life: >=2,000 5-angle measurements (continuous measurements at 10s intervals)

Calibration Interval: 21 days

Calibration: Internal calibration

Color Differences: dE*, dE2000; dE cmc, dE DIN 6175, dE Audi 2000

Communication Interface: TFT color display

Connectivity: USB 2.0

Dimensions (length, width, height): L: 180 mm, W: 70 mm, H: 95 mm

Humidity: 80% relative humidity

Illuminants: D65, A, C,  D50, F2, F7, F11, F12, D65

Illumination Colors: white

Illumination Spot Size: Pick-up field size: diam. ≈12 mm

Instrument Display: TFT color display with resistive touch, 2.8-inch diagonal, QVGA (240 x 320)

Inter-Instrument Agreement: Avg. 0.18 ΔE* on BCRA Tile Set

Lamp Life: 10 years

Languages Supported: E,F, I, Esp, D, P, Ch, J, Kor

Light Source: LED

Measurement Geometry: r45as15, r45as25, r45as45, r45as75, r45as110

Measurement Time: 2.5 seconds

Measurement Working Distance: contact on surface

Observers: d2°, d10°

Operating Temperature Range: 10°C-35°C

Photometric Range: 400 nm -700 nm

Photometric Resolution: 10 nm

Short Term Repeatability - White: 0.02 de*

Storage Temperature Range: -20°C - 50°C

Unit Color: black

Weight: 0.6 kg

What's Included:

• Calibration reference, white tile for spectral

• USB cable

• Stylus

• USB charger with EU, US, UK and China exchangeable plugs

• Documentation: Quickstart Guide in ring bound booklet format (as MA-T6/12)

• Easy-access, charging docking station

• USB Stick with Nucleos EXF QC, using alternative licensing system dongle less and with dongle.

• Spare light seal

• Screen protector: one mounted, two spare

• Wrist strap fitting into docking station

• Cleaning cloth
