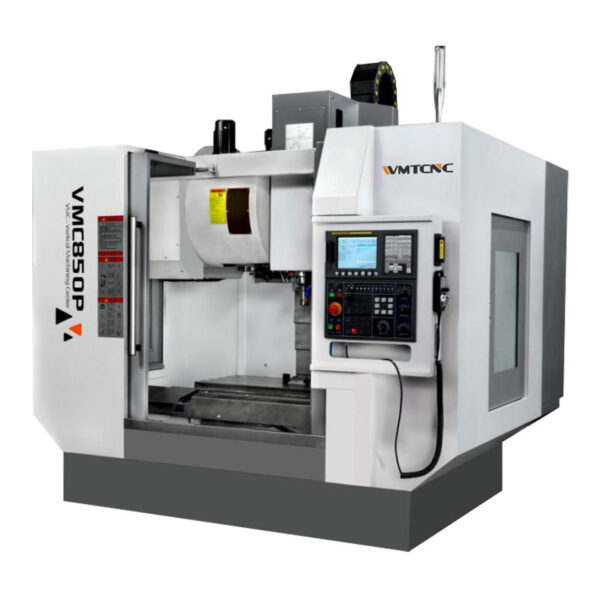

WMT CNC VMC850P 立式加工站

Worktable size (LxW): 500×1000 mm

T-slot (NxWx D): 5x18x100mm

X/Y/Z axis travel: 850/500/550mm

Distance from spindle center to column: 582mm

Distance from spindle nose to worktable surface: 100-650mm

Spindle taper: BT40

Spindle power: 11/15kw

Max.spindle speed: 8000/10000rpm

Max.feed speed: 12m/min

Rapid feed speed (X/Y/Z): 48/48/32m/min

X/Y/Z axis ball screw: 4016

Tool change time(T-T):2.5s

Positioning accuracy (X/Y/Z): ±0.008m

Re-positioning accuracy (X/Y/Z): ±0.004mm

LxWxH: 2460x2355x2860mm

Max.loading of worktable: 500kgs

Machine weight: 5500kg
