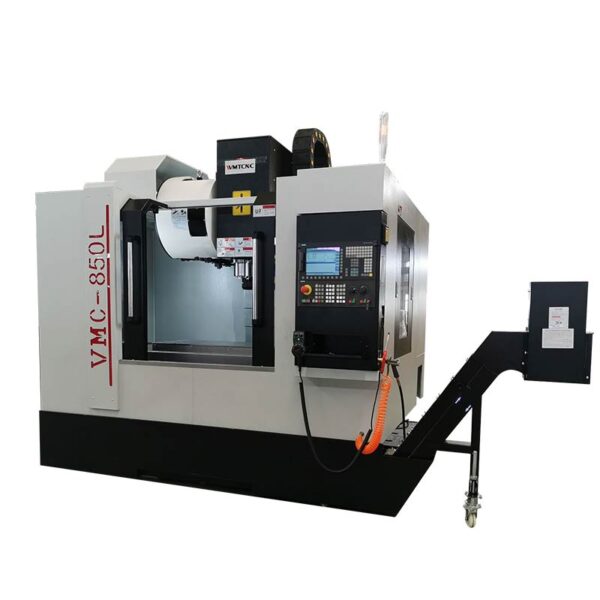

WMT CNC VMC850L 立式加工站 (8000RPM)

Worktable size (LxW): 1000x460mm

T-slot (NxWxD): 5x18x100mm

X/Y/Z axis travel: 850/500/500mm

Distance from spindle center to column: 520mm

Distance from spindle nose to worktable surface: 150-700mm

Spindle taper: BT40

Spindle power: 7.5/11kw

Max.spindle speed: 8000rpm

Max.feed speed: 12m/min

Rapid feed speed (X/Y/Z): 36/36/24m/min

X/Y/Z axis ball screw: 4012

Max.length of  tool: 300mm

Tool change time(T-T): 2.5s

Positioning accuracy (X/Y/Z): ±0.005mm

Re-positioning accuracy (X/Y/Z): ±0.002mm

LxWxH: 2620x2080x2525mm

Max.loading of worktable: 600kgs

Machine weight: 5500kg
