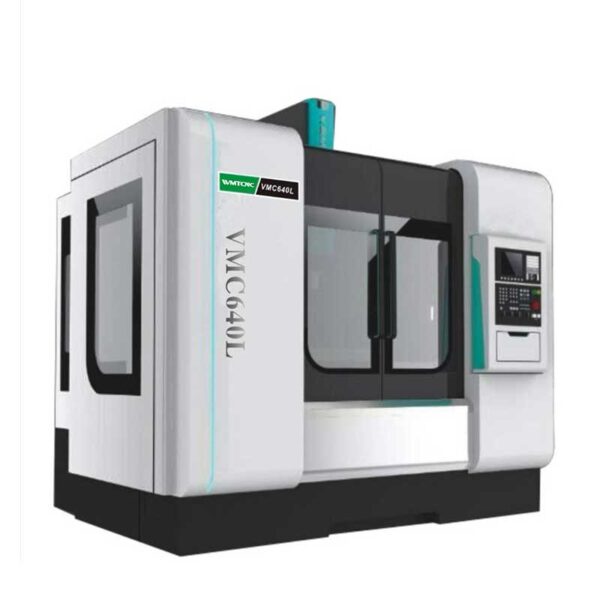

WMT CNC VMC640L 立式加工站
制造商: WMT CNC Model: VMC640L 保障: 12 Month - 报价要求
- 联系
Worktable size (LxW): 900x400mm
T-slot (NxWxD): 3x18x100mm
X/Y/Z axis travel: 640/400/500mm
Distance from spindle center to column: 476mm
Distance from spindle nose to worktable surface: 120-620mm
Spindle taper: BT40
Spindle power: 5.5kw
Max.spindle speed: 8000rpm
Max.feed speed: 15m/min
Rapid feed speed (X/Y/Z): 30/30/24m/min
X/Y/Z axis ball screw: 3212/3212/4012
Max.length of tool: 240mm
Tool change time(T-T):2.5s
Positioning accuracy (X/Y/Z): ±0.010mm
Re-positioning accuracy (X/Y/Z): ±0.005mm
LxWxH: 2200x2100x2550mm
Max.loading of worktable: 350kgs
Machine weight: 4100kg
