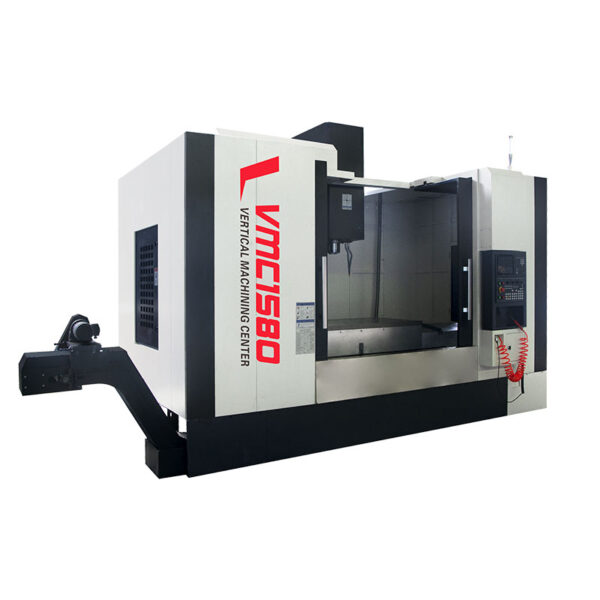

WMT CNC VMC1580 立式加工站

Worktable size: 1600X800mm

X, Y, Z travel axis: 1500X800X700mm

Booster cylinder: With spindle

T-siot size: 5-22X135

X, Y, Z screw model: 5016/5016/5016

Worktable load: 1500KG

X, Y, Z feeding speed: 24000, 24000, 18000 mm/min

Positioning accuracy: ±0.01mm

Repeat positioning: ±0.008mm

Spindle motor: 11/15KW

Distance from spindle center to column surface: 855mm

Distance from spindle nose to worktable: BT40:190-890/BT50:155-855mm

Net/Gross weight: 12/13T
