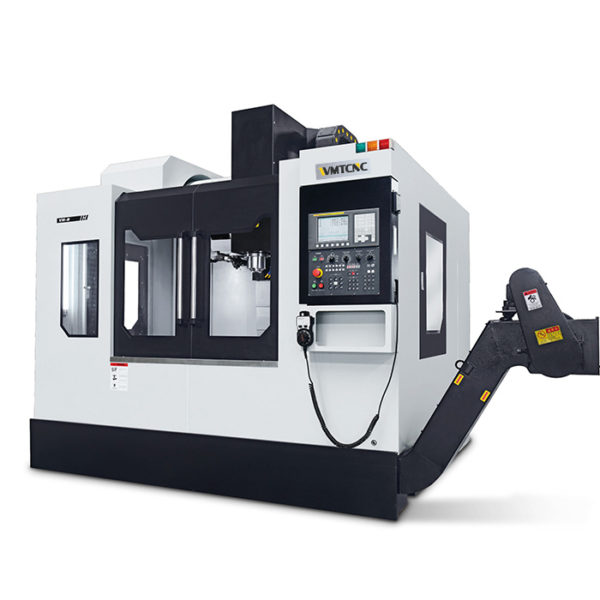

WMT CNC VH9 立式加工站

Worktable size (LxW): 1000x550mm

T-slot (NxWx D): 5x100x18mm

X/Y/Z axis travel: 930x570x570mm

Distance from spindle center to column: 630mm

Distance from spindle end to worktable: 130-700mm

Spindle taper: BT40

Spindle power: 11/15kw

Belt-drive spindle speed: 10000rpm

Direct-drive spindle speed: 12000rpm

Rapid feed speed (X/Y/Z): 48/48/48m/min

Positioning accuracy (X/Y/Z): ±0.005mm

Re-positioning accuracy (X/Y/Z): ±0.002mm

LxWxH: 2700x2350x2500mm

Max.loading of worktable: 600kgs

Machine weight: 6000kg
