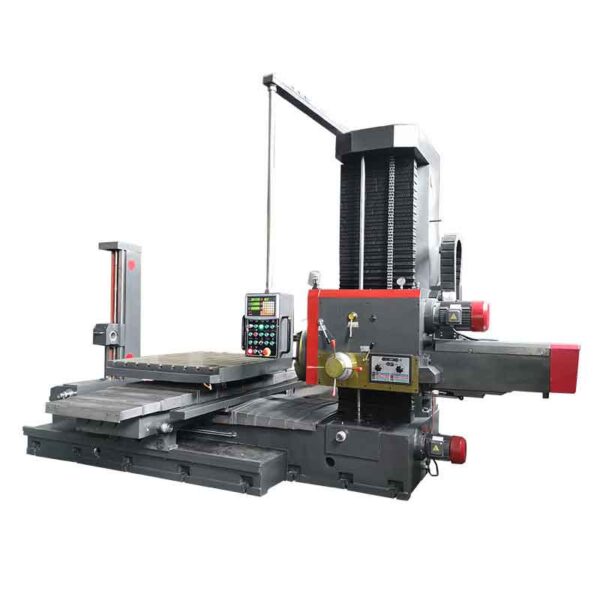

WMT CNC TPX6111B/3 铣镗床

Diameter of spindle(mm): 110mm

Max.torque of spindle: 1225 N.m

Max.axial thrust of spindle (N): 12250N

Spindle taper: morse 6(7:24、50#)ISO50 7:24

Worktable travel (Z/X): 1400/1600mm

Distance from spindle center line to worktable surface: 0~1200mm

Max.travel of spindle: 600mm

Max. load of table: 3000kg

Speed number of spindle: 22 steps

Speed range of spindle: 8-1000r/min

Rapid traverse speed: 2500mm/min

Worktable working surface: 1600*1300mm

Rapid speed of rotary table: 1r/min

Boring accuracy: IT7

Roughness of boring hole: 3.2-1.6

Overall dimension(L*W*H): 5117*3359*3079mm

Machine weight: 17000kg
