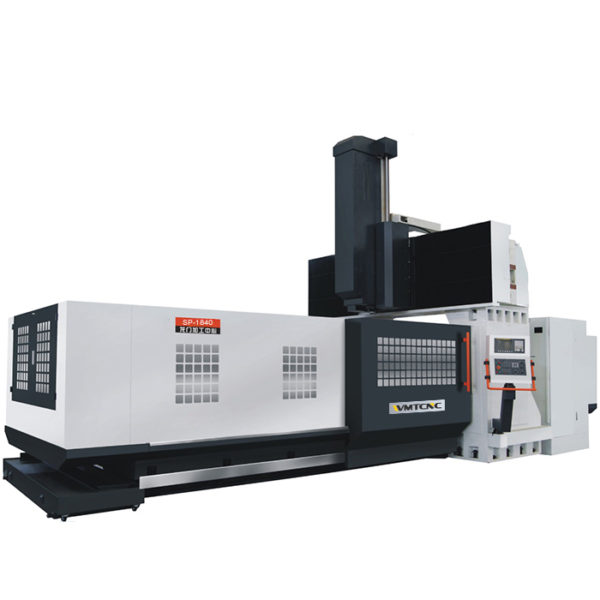

WMT CNC SP-1840 龙门式数控铣床 (18.5/22KW)

X-axis travel: 4200mm

Y-axis travel: 1850

Z-axis travel: 1000mm

Distance from spindle nose to worktable surface: 250-1250mm

Worktable size(WxL): 4000×1500mm

T-slots size (NxWxD): 9-22-160mm

Max. load bearing of worktable: 12000kgs

X/Y/Z guideway size: Roller 2-55/2-55mm,Z-axis hard guideway

Rapid feed speed of X axis: 10000 mm/min

Rapid feed speed of Y axis: 10000 mm/min

Rapid feed speed of Z axis: 10000 mm/min

Main motor power: 18.5/22KW

Spindle model: BT50/Φ190

Motor torque: 117.7N.M

Spindle taper: BT50

Driven type: Gear box 1:4

X/Y/Z linear guideway size: X/Y-axis 2-55# roller linear guideways

X/Y/Z ball screw size: X-axis 8020,Y-axis 6320,Z-axis 5016

Max. tool dimension: Φ110/Φ220mm

Max. length of tool: 300mm

Max.tool weight: 18kgs

Positioning accuracy: 0.03mm

Re-positioning accuracy: 0.018mm

Machine weight: 28000kg

Overall size (LxWxH): 8800×5800×5000 mm
