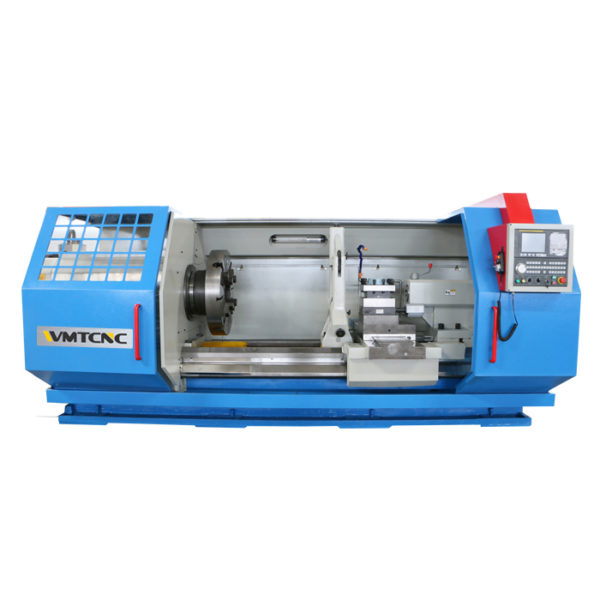

WMT CNC QK1327 数控管螺纹铣床 (800mm)

Max.swing over bed: Ф800mm

Max.swing over carriage: Ф480mm

Max. cutting length: 1500mm

Rail width: 600/755

Spindle bore: Ф280mm

Chuck size: 630mm

Range of spindle speed (L):20-100rpm(H):100-300rpm

X-axis travel: 450/550mm

Z-axis travel: 1250mm

X/Z rapid speed: 400mm/min

Electronic turret: 4 -station

Max.section of tool: 280x280mm

Stroke of tailstock sleeve: 250mm

Diameter/Hole of tailstock sleeve: Ф100mm/MT6

Main motor power: 15kW

Overall dimensions (L x W x H): 4600×2060/2100x2100mm

Packing size (L x W x H): 4800×2260/2300x2300mm

Net weight: 7000/9000kg

Gross weight: 8000/10000kg
