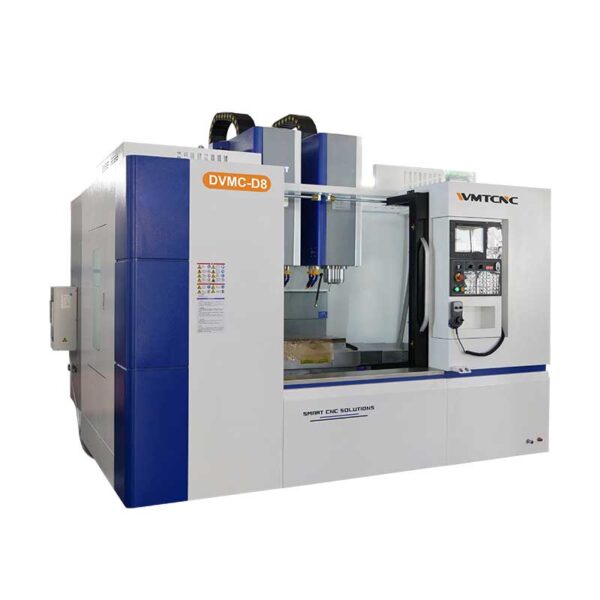

WMT CNC DVMC-D8 立式加工站 (8000/12000RPM)

Worktable size: 1300×520mm

T-slot: 18×5×90mm

Max. loading of worktable: 600kg

Spindle center to column distance: 580mm

Spindle nose to table distance: 130-700mm

Rail type: Linear Guideway

Spindle taper: BT40

Spindle speed: 8000/12000rpm

Main motor power: 7.5/11kw

X axis travel: 650mm

Y axis travel: 500mm

Z axis travel: Z1:570, Z2:570mm

X/Y/Z rapid traverse: 30000mm/min

Max.weight of tool: 8*

Positioning accuracy: ±0.006mm

Re-positioning accuracy: ±0.003mm

Air pressure: 0.5-0.8mpa

Coolant: air conditioning

Overall dimension(LxWxH): 3250×2800×2950mm

Weight: 7500kg
