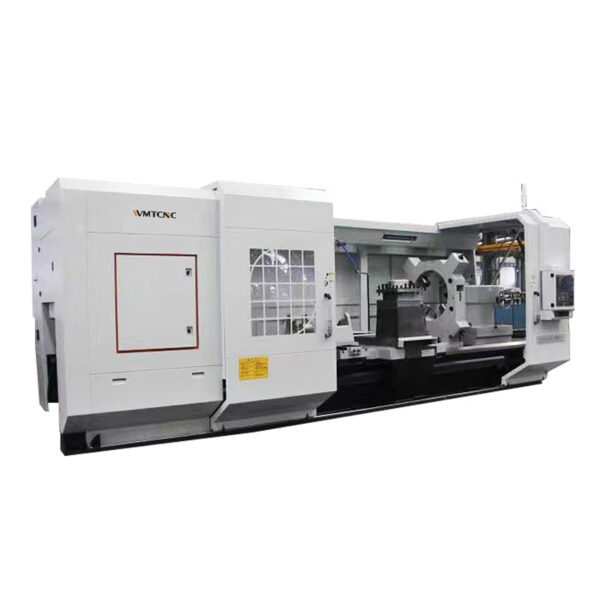

WMT CNC CK61200 平板数控铣床 (2100mm)

Swing over bed: 2100mm

Swing over cross slide: 1650mm

Distance between centers: 6000mm

Guideway width: 1100mm

Max.load capacity: 20T

Spindle bore: 130mm

Spindle bore taper: 120Metric 120

Spindle nose type: 1:30

Spindle speed steps: VF:4steps(Option:HYDR:4steps)

Spindle speed range: 2-200rpm

Chuck: 4-jaw manual 1600mm

Turret/tool post: Electric turret 4 position

Tool shank size: 50×50mm

X axis travel: 850mm

Z axis travel: 6000mm

X axis rapid traverse: 4000mm/min

Z axis rapid traverse: 6000mm/min

Tailstock quill diameter: Φ280mm

Tailstock quill taper: 1:07

Tailstock quill travel: 300mm

Main spindle motor: 55KW

Coolant pump motor: 0.25KW

Machine size: 6700-13700×2900×2900mm

Net weight: 29.5T
