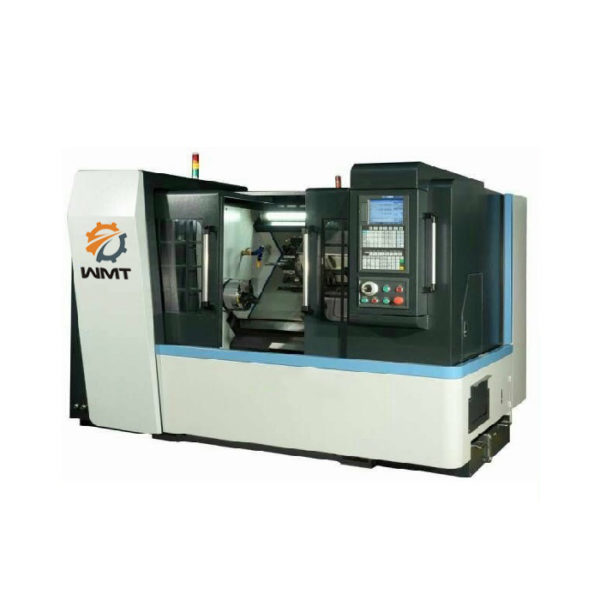

WMT CNC CK48T 斜床数控车床 (480mm)

Max.swing over bed: 480mm

Max.swing over cross slide: 350mm

Max.maching diameter(disk/rod): 320mm/80mm

Max.length of work piece: 420mm

spindle bearing diameter: 100mm

Spindle bore diameter: 62mm

Spindle bore taper: 80mm

Spindle nose: A2-6

Spindle speed range: 60-3800r/min

Power of the main motor: 7.5-11kw

Min.input unit: 0.0005/0.001mm

Rapid speed: 20/20m/min

Hydraulic chuck: 8″

Hydraulic station: 8

Max.dia for boring size: 32mm

Quill diameter: 80mm

Quill travel: 80mm

Packing size: 2220x1405x1640mm

N.W/G.W: 3400/3800kg
