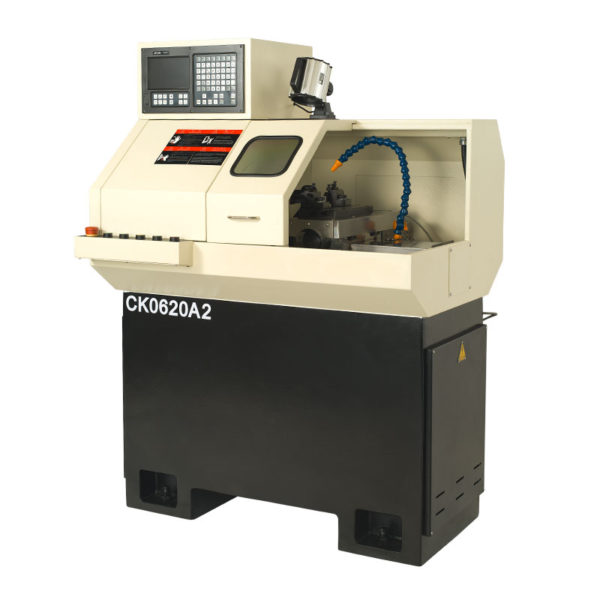

WMT CNC CK0620A 平板数控铣床

Rated voltage: 3 phase AC 380V

Rated frequency: 50HZ

Total input power: 3.2kW

BYSK: YZ150

Minimum setting unit: 0.001mm

Minimum moving unit X: 0.0005mm

Minimum moving unit Z: 0.001mm

Cutting speed: 1–4000mm/min

X rapid travel speed: 15000mm/min

Z rapid travel speed: 18000mm/min

Spindle through diameter: Φ21mm

Max. revolving dia.: Φ200mm

Spindle center height from the ground: 1000mm

Spindle speed range: 0-5000r/min

Spindle motor power: 2.0kw

X stroke: 300mm(diameter value)

Z stroke: 200mm

X axis servo motor power: 0.4kW

Z axis servo motor power: 0.4kW

Guideway: Linear guideway

Cutting motor power: 0.09kW

Capacity of coolant container: 150L

Motor power: 25W

Capacity: 1L

Input air pressure: 0.4–0.6Mpa

L*W*H: 1068*980*1450

Weight: 610kg
