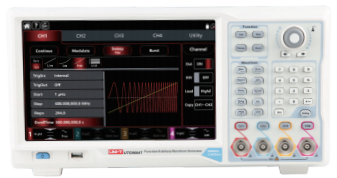

UNI-T UTG9354T 函数/任意波形发生器 (350MHz, 2.5GSa/s, 64Mpts, 4-Channel)

Channel: CH1 & CH2 (Main) => Max. frequency: 350MHz

Channel: CH3 & CH4 (Slave) => Max. frequency: 160MHz

Sampling rate: 2,5GSa / s (CH1 & CH2)

               625MSa/s (CH3 & CH4)

Vertical resolution: 14bits (CH1 & CH2)

                     16bits (CH3 & CH4)

Arbitrary wave length: 8pts-64Mpts (CH1 & CH2)

                       8kpts (CH3 & CH4)

Working mode: Continue, modulation, frequency sweep, burst, cymometer, digital protocol

Continue: Sine, square, ramp, pulse, harmonic, noise, PRBS, DC, arbitrary waveform

Modulation types: AM, PM, FM, DSBAM, ASK, PSK, BPSK, QPSK, FSK, 3FSK, 4FSK, QAM, OSK, PWM, SUM

Frequency sweep types: Linear, logarithmic, list, stepping

Burst types: N cycle, gating, infinite

Digit types: SPI, I2C, UART

Hardware cymometer: 100mHz-800MHz, DC/AC coupling

Frequency Characteristics

- CH1 & CH2

Sine wave: 1μHz-350MHz

Square wave: 1μHz-120MHz

Pulse wave: 1μHz-120MHz

Ramp wave: 1μHz-20MHz

Noise: 1μHz-350MHz

Arbitrary wave (DDS): 1μHz-80MHz

PRBS: 1μbps-80Mbps

Harmonic wave: 1μHz-175MHz

- CH3 & CH4

Sine wave: 1μHz-160MHz

Square wave: 1μHz-50MHz

Pulse wave: 1μHz-50MHz

Ramp wave: 1μHz-8MHz

Noise: 1μHz-160MHz

Arbitrary wave (DDS): 1μHz-50MHz

PRBS: 1μbps-40Mbps

Harmonic wave: 1μHz-80MHz

Frequency resolution: 1μHz

Rise/fall time: 1MHz, 1 Vpp, 50Ω load

                <2ns (CH1 & CH2), <6ns (CH3 & CH4)

Output amplitude (High Z): ≤40MHz - ≤600MHz (CH1 & CH2)

                           ≤20MHz - ≤200MHz (CH3 & CH4)

Amplitude accuracy: (1kHz sine wave with 0V offset, >10mVpp)

                    ± (1% of set amplitude+1mVpp)

DC offset ranges: DC output range: peak value AC＋DC

                  -5Vpp~5Vpp(50Ω); -10Vpp~10Vpp(High Z)

DC offset accuracy: ±1% of offset set value ± 0.5% of amplitude set value ±2mV

Interface

Standard configuration: USB Host, USB Device, LAN

Output resistance: 50Ω

Power: 100~240V AC, 50Hz/60Hz; 100~120Vrms (±10%), 400 Hz

Display: 10.1 inch TFT capacitive touchscreen with 1280x800 resolution

Product size(W×H×D): 370mmx115mmx185mm

Product net weight:4.04kg

Standard quantity per carton: 1pc

Standard carton size: 500mmx305mmx315mm

Standard carton gross weight: 6.06kg
