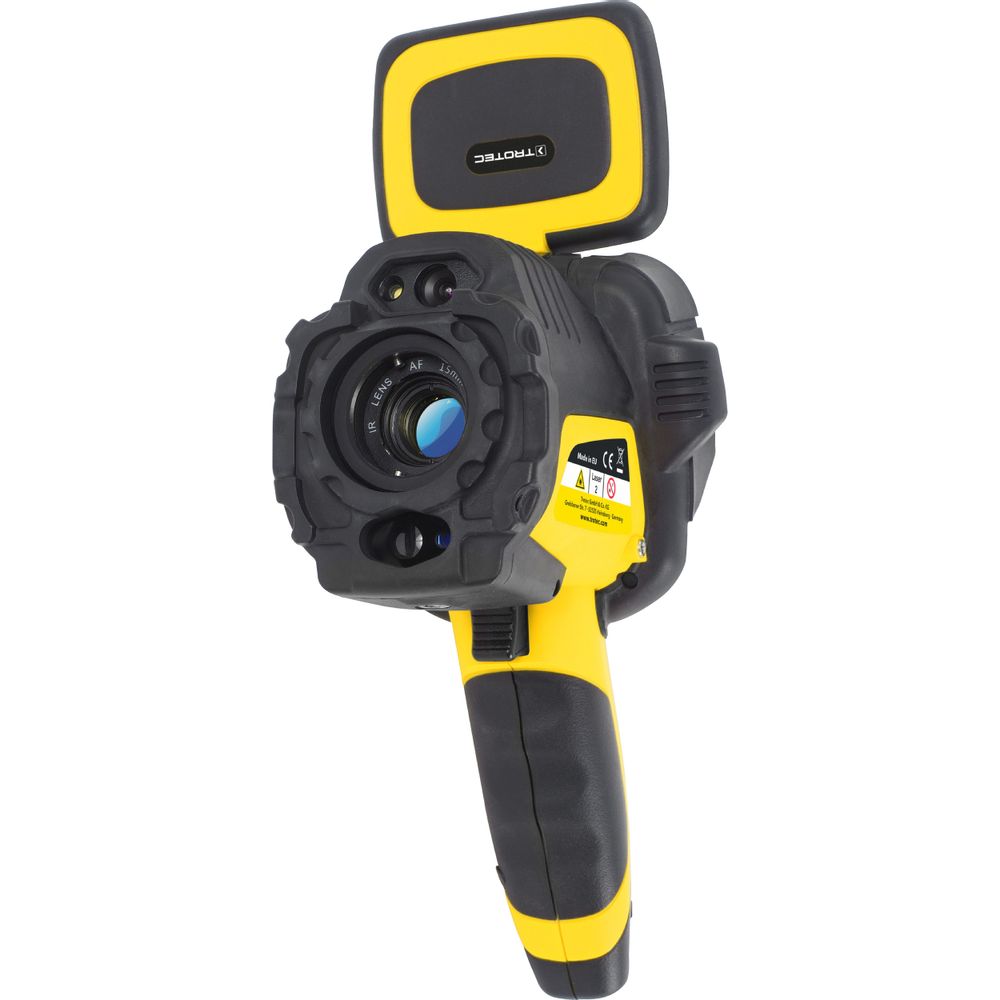

Trotec XC600 热成像相机 (640 x 480 px; -20 °C / +600 °C)

Temperature (°C):

Min. measuring range [°C]: -20

Max. measuring range [°C]: 600

Max. accuracy: ± 2 °C or ± 2 % of the current measured value

Radiometric image performance:

Detector type: Focal Plane Array (FPA), uncooled microbolometer

Detector resolution 640 x 480 pixels: ✓

Spectral range 8 - 14 µm: ✓

Thermal sensitivity [30 °C]: ≤ 0.05°C

Image refresh rate: 50/60Hz

Geometric resolution: 0.65 mrad

Standard lens | Radiometric image performance: 24°x18°

Minimum focal length: 0.35 m

Field of vision (FOV): 24°x18°

Display:

LCD 3.5": ✓

Touch: ✓

Colour: ✓

Visual image performance (integrated digital camera):

Video norm: PAL/NTSC

Interfaces:

USB (USB-C): ✓

Composite video (video out): ✓

Bluetooth: optional

Power supply:

Via battery (Li-ion): ✓

Operating time:

Up to 8 h: ✓

Device control:

Touch: ✓

Push buttons: ✓

Memory organisation:

Storage medium: Internally 16 GB (optionally 32 GB)

Radiometric file format: JPEG

Visual file format: JPEG

Ambient conditions:

Operation - min. temperature [°C]: -20

Operation - max. temperature [°C]: 50

Storage - min. temperature [°C]: -40

Storage - max. temperature [°C]: 70

Min. humidity [%]: 10

Max. humidity (non-condensing) [%]: 95

Type of protection:

IP54 IEC 529: ✓

Shock:

25G IEC 60068-2-29: ✓

Vibration:

2G IEC 60068-2-6: ✓

Laser:

Type: Semiconductor AlGalnP diode

Classification: Laser class 2

Wavelength [µm]: 635

Housing design:

Plastics: ✓
