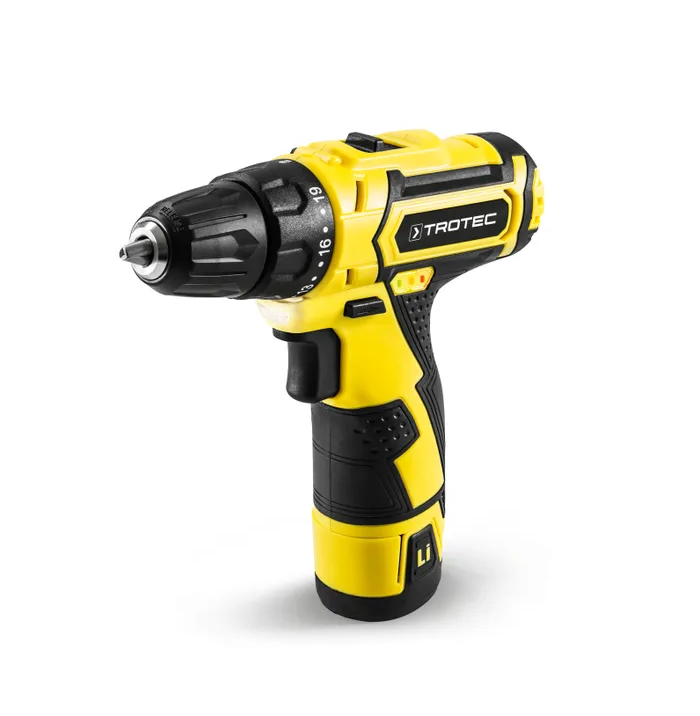

Trotec PSCS 11‑12V 无绳钻机驱动器 (0 - 1300; 22 Nm)

Technical data:

Number of speed levels: 2

Idle speed 1. Speed level: 0 - 400

Idle speed 2. Speed level: 0 - 1.300

Number of torque settings: 19 + 1

Max. torque [Nm]: 22

Tool holder: Quick-release chuck

Max. chucking range [mm]: 10

Maximum drilling diameter:

Wood [mm]: 20

Metal [mm]: 8

Sound values according to EN 62841:

Sound pressure level [dB(A)]: 63.07

Sound power level [dB(A)]: 74.07

Uncertainty K [dB]: 5

Vibration information according to EN 62841:

Vibration emission value screwing in wood (ah) [m/s2]: 0.969

Uncertainty K [m/s2]: 1.5

Vibration emission value for drilling in metal (ah) [m/s²]: 1.58

Electrical values battery:

Battery nominal voltage [V]: 12

Battery capacity [Ah]: 2

Battery type: Li-ion

Battery charging time [h]: 1

Charger:

Mains connection: 220 - 240 V, 50 Hz

Output voltage [V]: 12.8

Power input [W]: 45

Nominal current consumption [mA]: 2500

Connection plug: CEE 7/16

Cable length [m]: 1.5

Protection class: II

Dimensions:

Length (packaging excluded) [mm]: 180

Width (packaging excluded) [mm]: 50

Height (packaging excluded) [mm]: 190

Weight:

(packaging excluded) [kg]: 1
