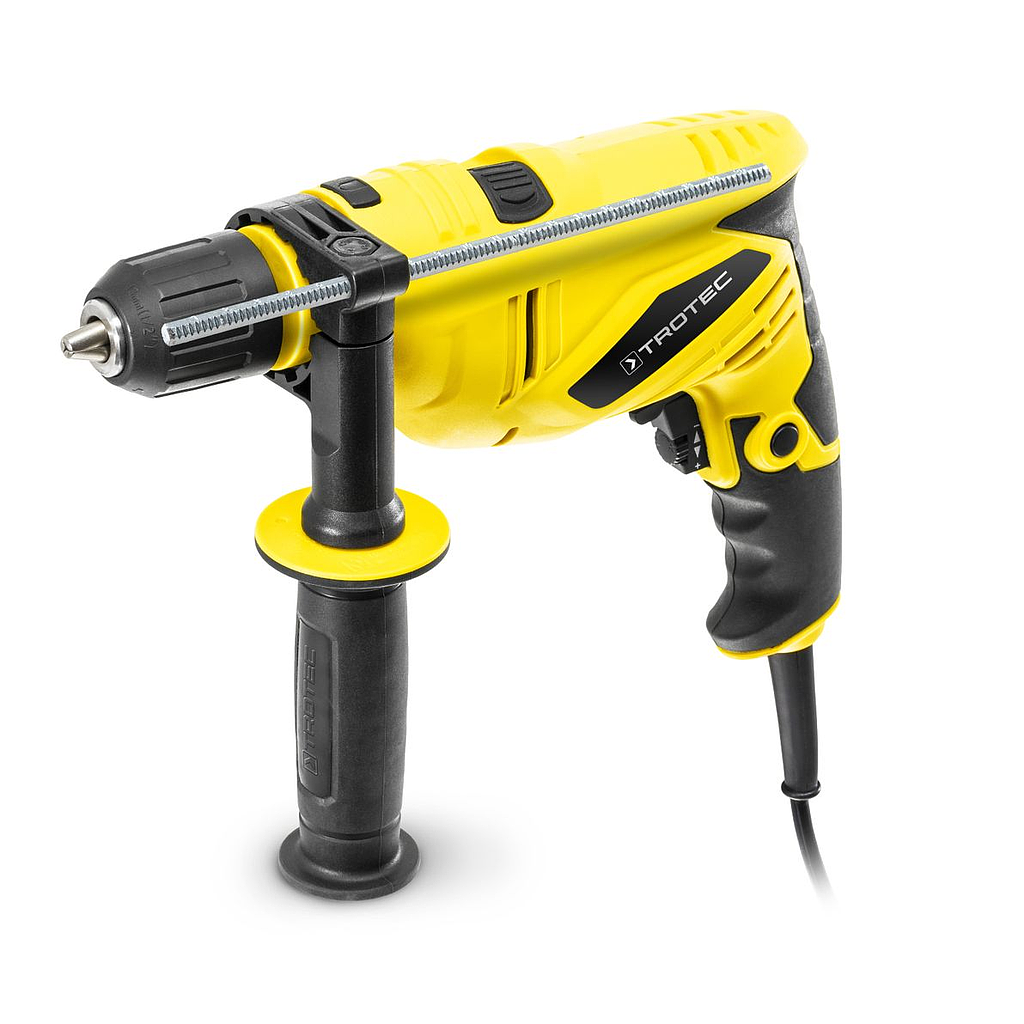

Trotec PHDS 10-230V Impact Drill (50 - 3000 min-1 ; 800 - 48000 min-1)

Technical data:

Idle speed 1. Speed level: 50 - 3.000 min-1

Impact frequency combined 1. Speed level: 800 - 48.000 min-1

Max. torque (decimal digit) [Nm]: 7.5

Tool holder: Quick-release chuck

Max. chucking range [mm]: 13

Maximum drilling diameter:

Wood [mm]: 30

Metal [mm]: 10

Masonry / bricks [mm]: 13

Electrical values:

Mains connection: 230 V, 50 Hz

Power input [W]: 650

Connection plug: CEE 7/17

Cable length [m]: 3

Protection class: II

Sound values according to EN 62841:

Sound pressure level [dB(A)]: 95

Sound power level [dB(A)]: 106

Uncertainty K [dB]: 5

Vibration information according to EN 62841:

Vibration emission value (ah) Impact drilling in brickwork with main handle [m/s²]: 21.795

Uncertainty (K) Impact drilling in brickwork with main handle [m/s²]: 1.5

Vibration emission value (ah) Impact drilling in brickwork with additional handle [m/s²]: 12.605

Uncertainty (K) Impact drilling in brickwork with additional handle [m/s²]: 1.5

Vibration emission value (ah) Drilling in metal with main handle [m/s²]: 4.041

Uncertainty (K) Drilling in metal with main handle [m/s²]: 1.5

Vibration emission value (ah) Drilling in metal with additional handle [m/s²]: 2.713

Uncertainty (K) Drilling in metal with additional handle [m/s²]: 1.5

Dimensions:

Length (packaging excluded) [mm]: 200

Width (packaging excluded) [mm]: 60

Height (packaging excluded) [mm]: 300

Weight:

(packaging excluded) [kg]: 2
