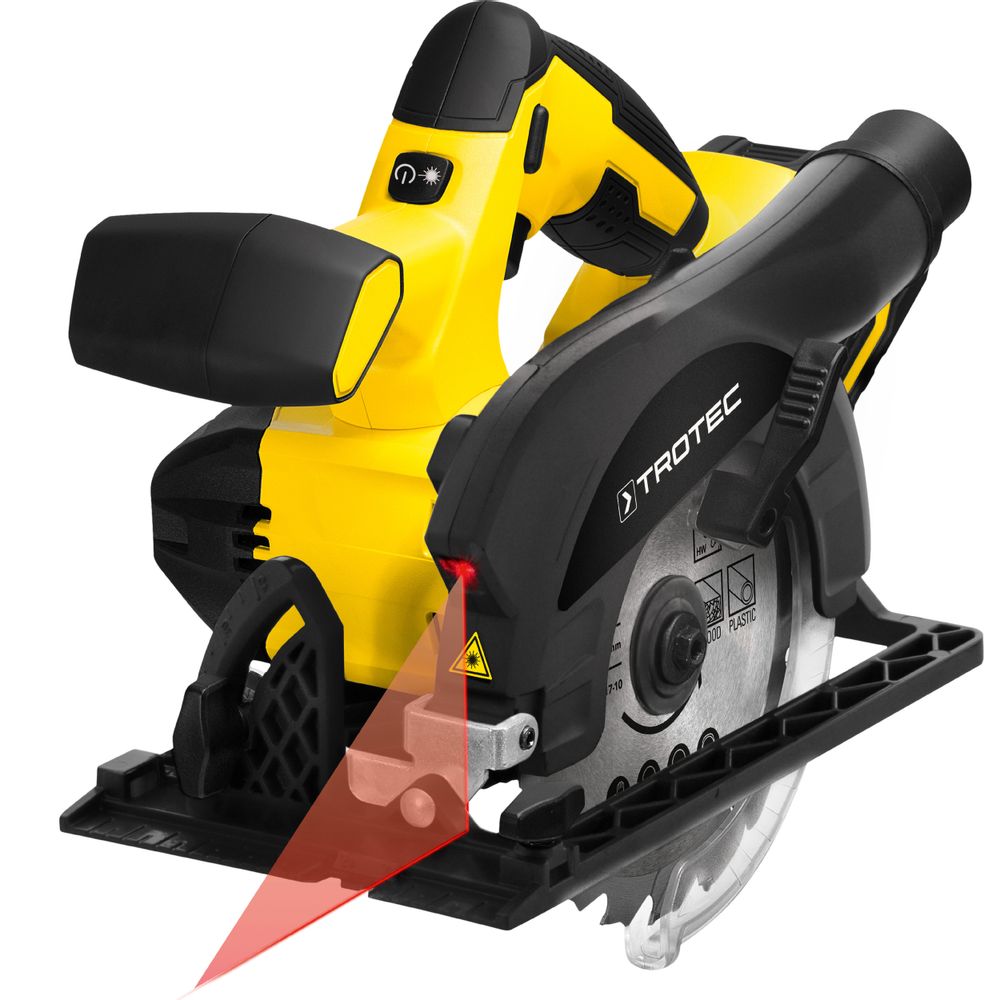

Trotec PCSS 10‑20V 便携式圆锯 (3.800 min-1)

Technical data:

Idle speed: 3.800 min-1

Max. idle speed [min-1]: 3800

Cutting depth range at 45 °: max. 36 mm

Cutting depth range at 0 °: max. 48 mm

Sound values according to EN 62841:

Sound pressure level LpA [dB(A)]: 89

Sound power level LwA [dB(A)]: 100

Uncertainty (K) Kpa / Kwa [dB]: 3

Vibration information according to EN 62841:

Vibration emission value (ah) Main handle (sawing wood) [m/s²]: 1.879

Uncertainty (K) Main handle (sawing wood) [m/s²]: 1.5

Vibration emission value (ah) Front handle (sawing wood) [m/s²]: 2.213

Uncertainty (K) Front handle (sawing wood) [m/s²]: 1.5

Saw blade data:

Idle speed saw blade [min-1]: 9000

Saw blade diameter [mm]: 150

Bore diameter [mm]: 16

Blade thickness [mm]: 0.9

Teeth thickness [mm]: 1.6

Electrical values battery:

Battery nominal voltage [V]: 20

Battery capacity [Ah]: 2

Capacity indication: 3-stage

Battery type: Li-ion

Battery charging time [h]: 1


Mains connection: 230 - 240 V, 50 Hz

Output voltage [V]: 21.5

Power input [W]: 65

Nominal current consumption [mA]: 2400

Connection plug: CEE 7/16

Cable length [m]: 1.5

Protection class: II


Length (packaging excluded) [mm]: 190

Width (packaging excluded) [mm]: 352

Height (packaging excluded) [mm]: 238


(packaging excluded) [kg]: 2.6
