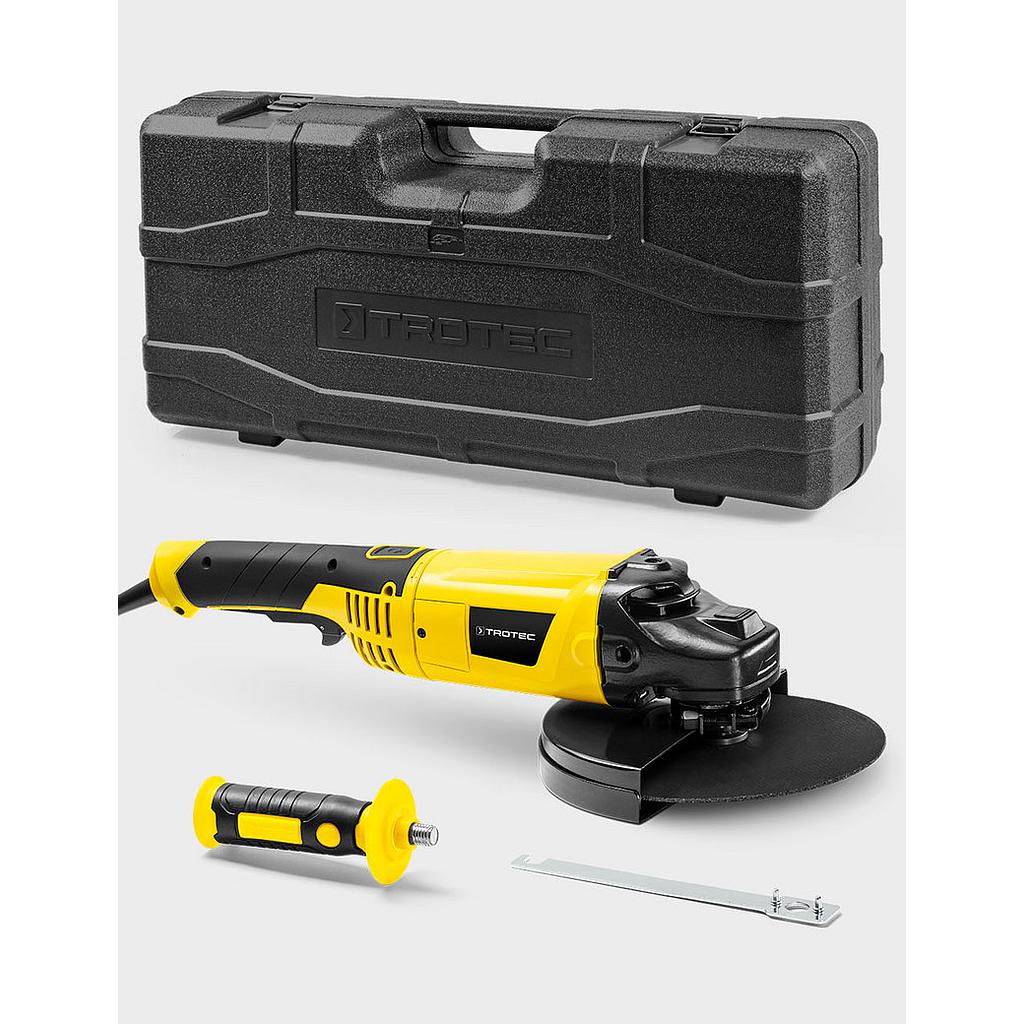

Trotec PAGS 10-230 角磨机 (2000 W; 6500 min-1)
制造商: Trotec Model: PAGS 10-230 P/N: 4.440.000.105 - 联系
Technical data:
Rated speed [min-1]: 6500
Spindle thread: M14
Type of protection: IP20
Protection class: II
Disc size [mm]: 230
Electrical values:
Power input [W]: 2000
Mains connection: 230 V, 50 Hz
Connection plug: CEE 7/17
Cable length [m]: 4
Sound values according to EN 60745:
Sound pressure level [dB(A)]: 96.2
Sound power level [dB(A)]: 107.2
Uncertainty K [dB]: 3
Vibration information according to EN 60745:
Vibration emission value (ah) Handle [m/s²]: 9.43
Uncertainty (K) Handle [m/s²]: 1.5
Data cutting disc:
Idle speed [min-1]: 6600
Max. disc speed [m/s]: 80
Cutting disc diameter [mm]: 230
Bore diameter [mm]: 22.23
Cutting disc thickness [mm]: 3
Functions and features:
On/off switch with safety switch: ✓
Soft start: ✓
Spindle lock: ✓
Main handle can be adjusted in 3 positions: 90° left/right, Centre position
Additional handle 3 mounting options: ✓
Infinitely variable speed control: -
Softgrip: ✓
Accessories scope of delivery:
Cutting disc: ✓
Wrench: -
Pin-type face wrench: ✓
Protective cover: ✓
Additional handle: ✓
Transport case: ✓
Dimensions:
Length (packaging excluded) [mm]: 170
Width (packaging excluded) [mm]: 570
Height (packaging excluded) [mm]: 155
Weight:
(packaging excluded) [kg]: 5
