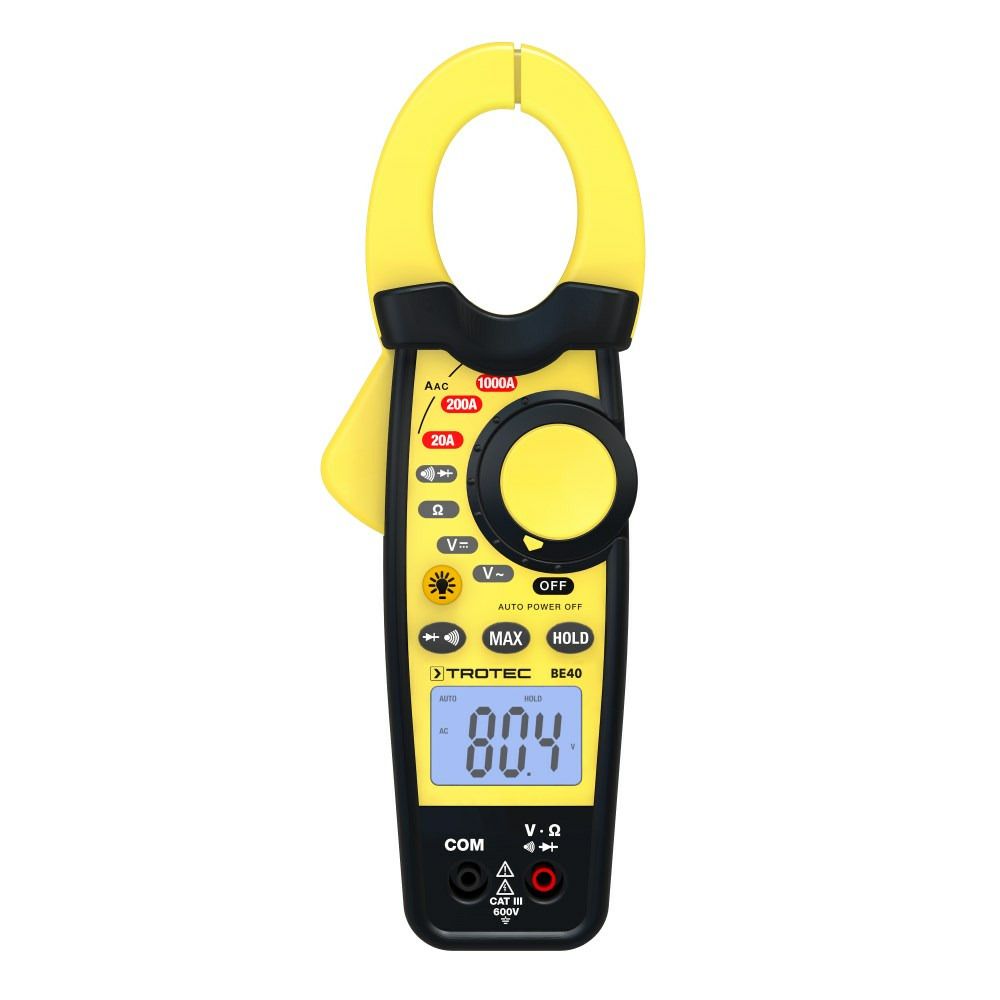

Trotec BE40 Current clamp (100 A / 600 V / 20 MΩ; CAT III 600 V)

Size of the clamp opening: approx. 30 mm

Diode test: test current of 0.3 mA; open-circuit voltage: 1.5 V DC

Continuity test: threshold < 120 Ω; test current < 1 mA

Measuring range exceeded: OL is displayed

Measuring rate: 2 per second

Input impedance: 7.8 MΩ (V DC and V AC)

Frequency range alternating current: 50/60 Hz (A AC)

Frequency range AC voltage 50/60 Hz (V AC)

Operating temperature: -10 °C to 50 °C (-14 °F to 122 °F)

Storage temperature: -30 °C to 60 °C (-22 °F to 140 °F)

Relative humidity: up to 85 %

Overvoltage protection: category lll. 600 V

Battery: 2 x 1.5 V. type AAA

Automatic switch-off: after approx. 15 minutes

Dimensions (length x width x height): 229 x 48 x 80 mm

Weight approx.: 303 g

Measuring ranges

Alternating current: 20~1000A

DC voltage: 200mV~600V

AC voltage: 200mV~600V

Resistance: 200 Ω~20 MΩ

Scope of delivery

• 1 x Device

• 1 x Red measuring cable

• 1 x Black measuring cable

• 2 x 1.5 V battery AAA

• 1 x Bag/holster

• 1 x Manual

Details

Manual
