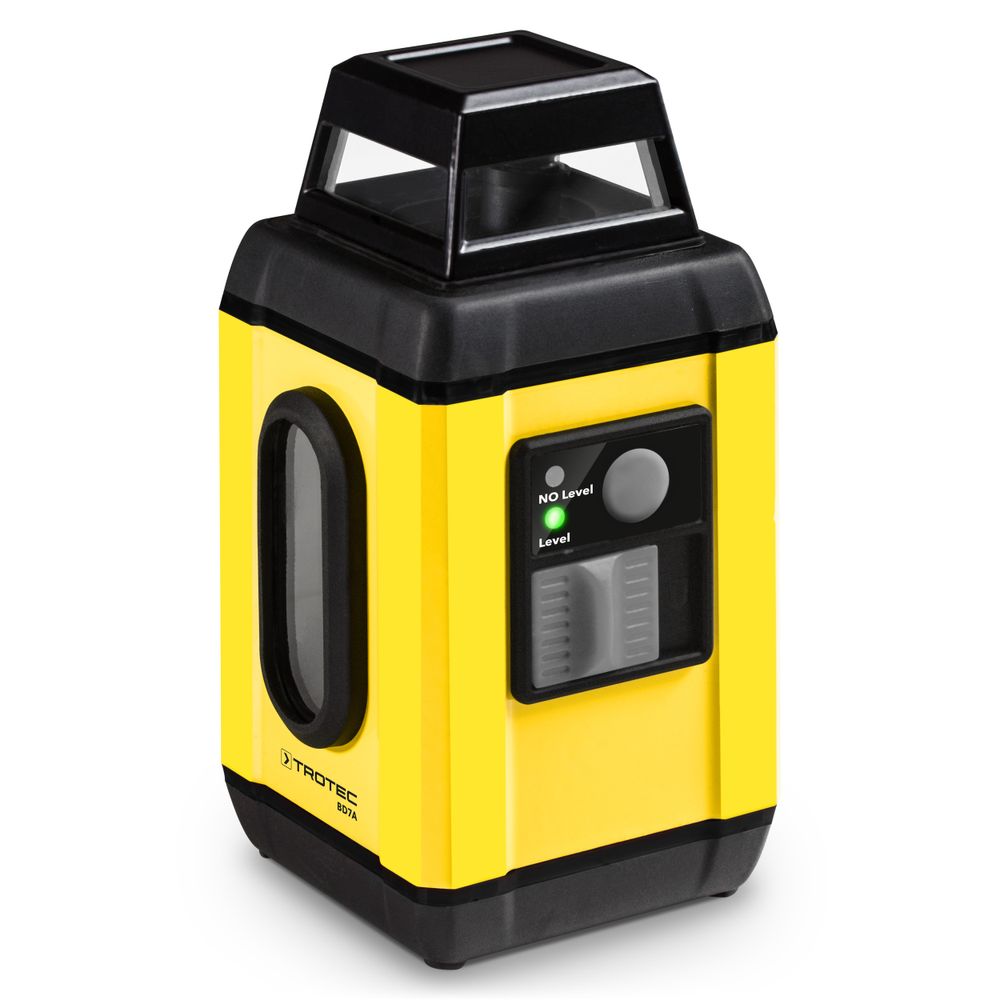

Trotec BD7A 旋转激光器 (±3°)
制造商: Trotec Model: BD7A P/N: 3.510.205.152 - 联系
Nivellierung:
Nivellierungsbereich [°]: ±3°
Laser:
Accuracy – laser: ±0.8 mm/m (at 0 °)
Accuracy – laser: ±1 mm/m (at ≤3 °)
Range [m]: 10 m
Laserfarbe: rot
class: 2
output < [mW]: 1
wavelength [nm]: 650
Device control: Push buttons: ✓
Housing design: Metal: ✓
Type of protection: IP40: ✓
Power supply:
Internal (battery): 1 x 3.7 V Li-ion battery integrated
Ambient conditions:
Operation - min. temperature [°C]: 0
Operation - max. temperature [°C]: 40
Storage - min. temperature [°C]: -20
Storage - max. temperature [°C]: 70
Storage - max. relative humidity (non-condensing) [%]: 80
Functions and features:
Cardanic automatic levelling: ✓
Intuitive operation: ✓
Projection of individual or cross lines (360° horizontal, 90° vertical): ✓
Laser locking function (transport protection) and possibility of inclination: ✓
Optical warning outside the automatic levelling range: ✓
¼ inch tripod thread: ✓
Multi-functional support arm: ✓
Individual/total activation of the integrated lasers: ✓
