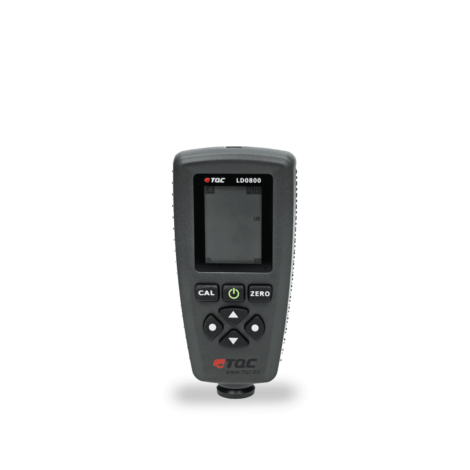

TQCSheen LD0800 FE/NFE 涂层测厚仪 (0-1300μm)

Measuring Principe: F probe = magnetic induction / N probe = eddy currents Measuring range: 0-1300μm / 0 to 51.2 mils

Accuracy: ±3% + 2μm (0.078 mils)

Resolution: 0μm – 999μm (1μm) / 0 mils – 39.39 mils (0.01 mils)

                 1000μm – 1300μm (0.01mm) / 39.4 mils – 51.2 mils (0.1 mils)

Calibration: One point to four points calibration, zero point calibration, basic

Statistics: No. of readings, mean, minimum, maximum and standard deviation

Units: μm, mm and mils

Alarm: User can set high/low alarm limit, alarm icon displayed on LCD when over limit

Min. curvature radius convex: 1.5mm

Min. curvature radius concave: 25mm

Min. measuring area: Diameter 6mm

Min. thickness of substrate: Fe - 0.5mm (0.02”) / NFe – 0.3mm (0.012”)

Max. Measuring rate: 2 readings p/s

Computer interface: download data via USB

Power supply: 2 x 1.5V AAA battery

Operation environment: Temp: 0 to 40°C (32 to 104°F) / Humidity: 20% to 90% Storage environment: Temp: -20 to 70°C (-4 to 158°F)

Size: 110mm x 53mm x 24mm (4.33”x 2.09”x 0.94”)

Case material: ABS 92g (3.24oz)

Scope of supply:

• TQC Fe/NFe Coating thickness gauge

• USB cable

• Software

• 2 x batteries 1.5V AAA

• Foil set

• NFe zero plate

• Fe zero plate

• CarryingCase
