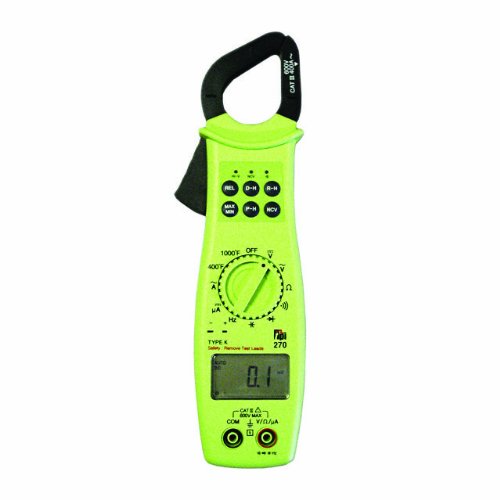

TPI 270 数字钳位计

Basic DC Accuracy:  0.5%

DCV: 600V / 0.1mV

ACV: 600V / 0.1mV

DCA: 400μA / 0.01μA

ACA: 400A / 0.01A

Resistance (maximum): 40MΩ / 0.1Ω

Frequency (maximum): 400MHz / 0.001KHz

Capacitance (maximum): 4000μF / 0.001nF

Temperature (maximum): 1000°F / 0.1°

Diode: Test Current Max 1.5mA

Continuity: Buzzer sounds at approx. 35Ω Response time; 50ms

Agency Approval: CEIEC 1010: CATIII; 600V cULus 61010

Overall Dimensions: 10 x 1.3 x 2.5” (255 x 32.5 x 65mm)

Weight: .8 lbs (363g)
