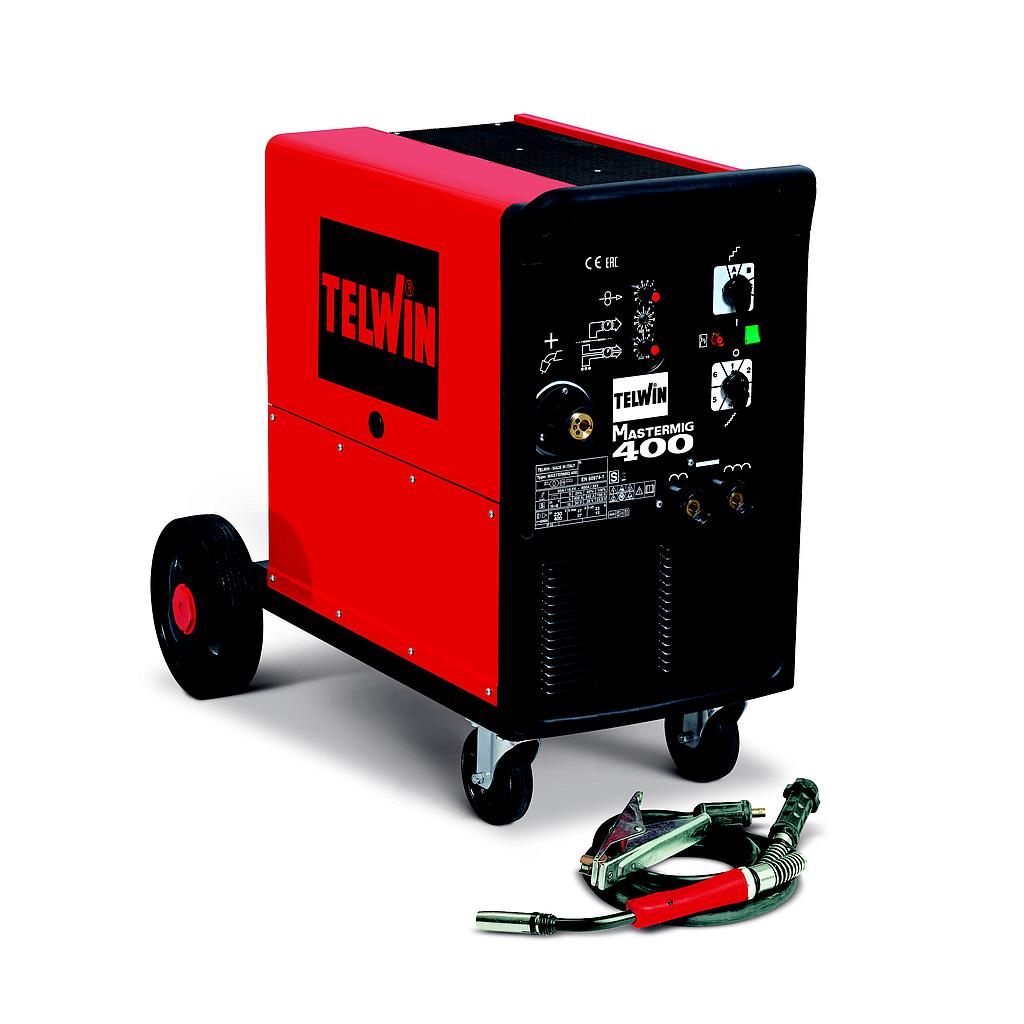

Telwin MASTERMIG 400 MIG/MAG 焊机，230-400V (0.6 -1.6 mm)

MAX NO LOAD VOLTAGE: 45,5 V

INOX WELDING WIRE DIAMETER: 0,8 -1,6 mm

THREE PHASE MAINS VOLTAGE: 230 /400 V

MAX ABSORBED POWER: 20 kW

ALUMINIUM WELDING WIRE DIAM.: 0,8- 1,2 mm

MAINS FREQUENCY: 50 / 60 Hz

ABSORBED POWER AT 60% 10 kW

FLUX CORED WELDING WIRE DIAM.: 1 -1,2 mm

CURRENT RANGE: 50 - 400 A

POWER FACTOR: (cosphi) 0,9

BRAZING WIRE DIAM.: 0,8 - 1,2 mm

MAX CURRENT DC (EN 60974-1): 400 @25 % A

ADJUSTMENT POSITIONS: 18

PROTECTION DEGREE: IP22

DC CURRENT: 240 A

STEEL WELDING WIRE DIAMETER: 0,6 -1,6 mm

DIMENSIONS: 94,5 x 56,5 x 83 cm

Included Accessories

ARGON GAS BOTTLE IT ADAPTOR - 432036

MT36 MIG TORCH 3M - 742186

TORCH HOOK - 644444

FEED ROLL 4R 0,6FE-0,8/0,9FE "P-K" - 742576

GAS REGULATOR 2 MANOMETERS 32 L\min - 722346

WORK CLAMP + CABLE 35MMQ 3M AX50 - 804217
