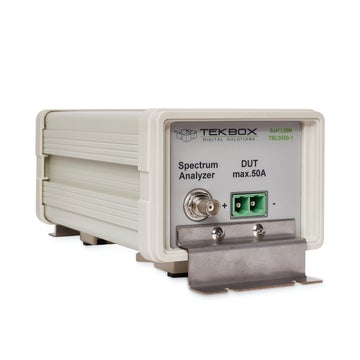

Tekbox TBL0550-1 线路阻抗稳定网络

Frequency range: 100 kHz – 150 MHz

DC Resistance: < 9 mΩ Source+ to DUT+; < 2 mΩ Source- to DUT-

Maximum current: 50A continuous, 70 A for 3 minutes

Nominal operating voltage range: 0 – 60V DC;

Component rating: 250V

High current plug/screw terminals – male: Phoenix Contact 1998933, female: Phoenix Contact 1967375

1µF capacitor can be disconnected internally by removing a jumper

Dimensions: 120 mm x 100 mm x 225 mm (270 mm including ground brackets); weight: 1.6 kg

Details

Manual
