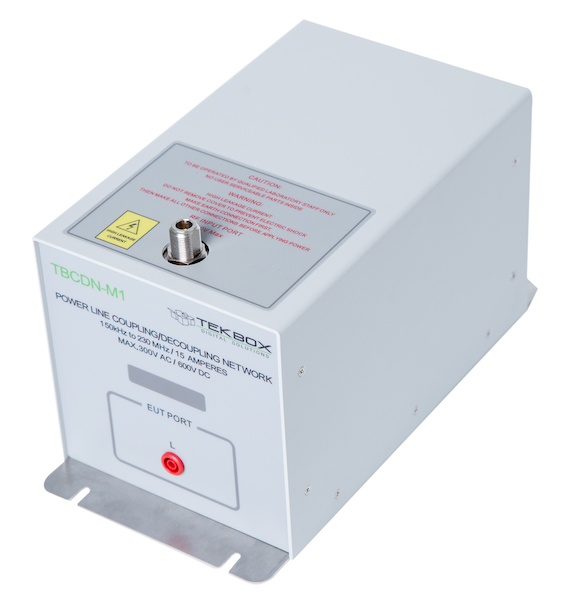

Tekbox TBCDN-M1 Coupling Decoupling Network

Maximum supply voltage: 300V AC, 600V DC

Maximum current: 15A

Frequency range: 150 kHz – 230 MHz

Maximum RF input power: 6.5W CW

Maximum RF input voltage: 32 V

Common mode impedance: 150 kHz – 24 MHz: 150 Ω ± 20 Ω

                                             24 MHz – 80 MHz: 150 Ω + 60 Ω / - 45 Ω

                                             80 MHz – 230 MHz: 150 Ω ± 60 Ω

Voltage Division ratio: 150 kHz – 80 MHz: 9.5 dB ± 1 dB

                                    80 MHz – 230 MHz: 9.5 dB + 3 dB / - 2 dB

RF input connector: N – female

EUT / AE connectors: 4 mm banana safety jacks, 4mm slots in base plate for GND connection

Housing material: powder coated aluminium, stainless steel base plate

Dimensions: 300 x 150 x 150 mm

Weight: ca. 2.5 kg

Included: individual test protocol with voltage division ratio and common mode impedance

Optional accessories: 30mm adapter panel with shorting bars and N connector 50 Ω to 150 Ω N-male to N-female adapter
