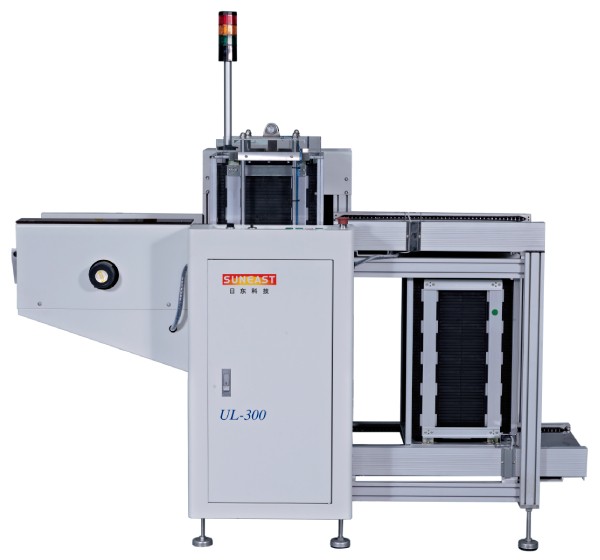

Suneast UL-300 Fully automatic PCB unloader

Machine dimension(mm): 1820L*860W*1250H

PCB Size(mm): Min:70L*50W*0.7H~Max:330L*250W*3H

Carrier size(Pallet size) (mm): 355L*320W*563H; Weight Approx 6kg

Approx machine weight: 200kg

Power: 0.2KW

Total alowed loading number of the carrier: 3

Conveying height: 900±20mm

Stepping choice: 10mm,20mm,30mm,40mm,50mm

Control mode: PLC

Production cycle: ≤10/s

Power supply: AC220V 50/60Hz

Gas pressure: 0.4~0.7MPa

Direction: L to R (Options:R to L)
